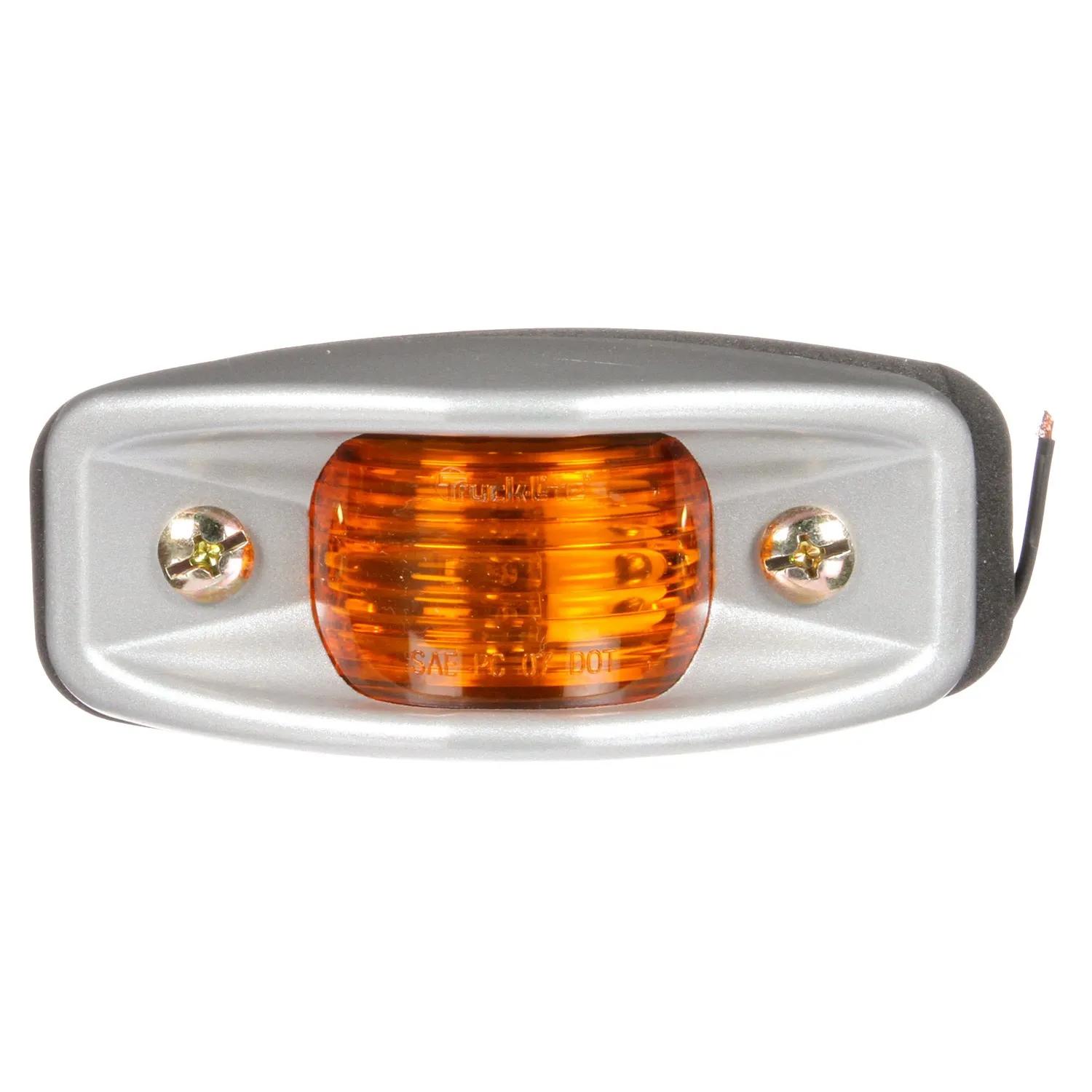

Marker Clearance Light, Amber, Rectangular
#TRL26311Y
Product Overview
26 Series, Incandescent, Yellow Rectangular, 1 Bulb, Marker Clearance Light, PC, Silver Aluminum 2 Screw, Hardwired, Stripped End, 12V
Features & Benefits
- Choose either a rugged die-cast or high impact ABS housing
- Not suitable for PC requirements
- Replaces Signal-Stat 1113/1114 series
Specifications
| Ampères | 0.33 amp |
| Couleur | Ambre |
| Contient | Lampe |
| Major actuel | 0,35 amp |
| Depth | 1-1/2 in (3.81 cm) |
| Diamond Shell (Y/N) | Oui |
| Finish | Painted Silver |
| Function | P2, P3, PC, PC2 |
| Height | 2-1/4 in (5.72 cm) |
| Housing Color | Argent |
| Kit (Y/N) | No |
| Length | 5 in (12.7 cm) |
| Lens Material | Acrylic |
| Material | Aluminium |
| Mount Type | Montage par support |
| Number Of Wires | 1 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | Non |
| Series | 26 Series |
| Shape | Rectangle |
| Standard | FMVSS 108, NSVAC 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 5 in (12.7 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 3 po (7,62 cm) |
Interchanges & Equivalent parts:
| 46293 |
| 2250101283 |
| 841326311Y |
| HT50602269 |
| TL26311Y |
| TLD26311Y |
| 123A |
| 26311Y |
| 1377A |
| 712231 |
| 8413-26311Y |
| LIT26311Y |
| TL 26311Y |
| TL 26311Y |
| TRU26311Y |
| 1559A |
| GRT46283 |
| M124A |
| 5004512 |
| 46283 |
