Marker Clearance Light, Amber Yellow, Rectangular, 2 Bulb, 19 Series, Incandescent, Polycarbonate, 12V
#TRL19200Y
Product Overview

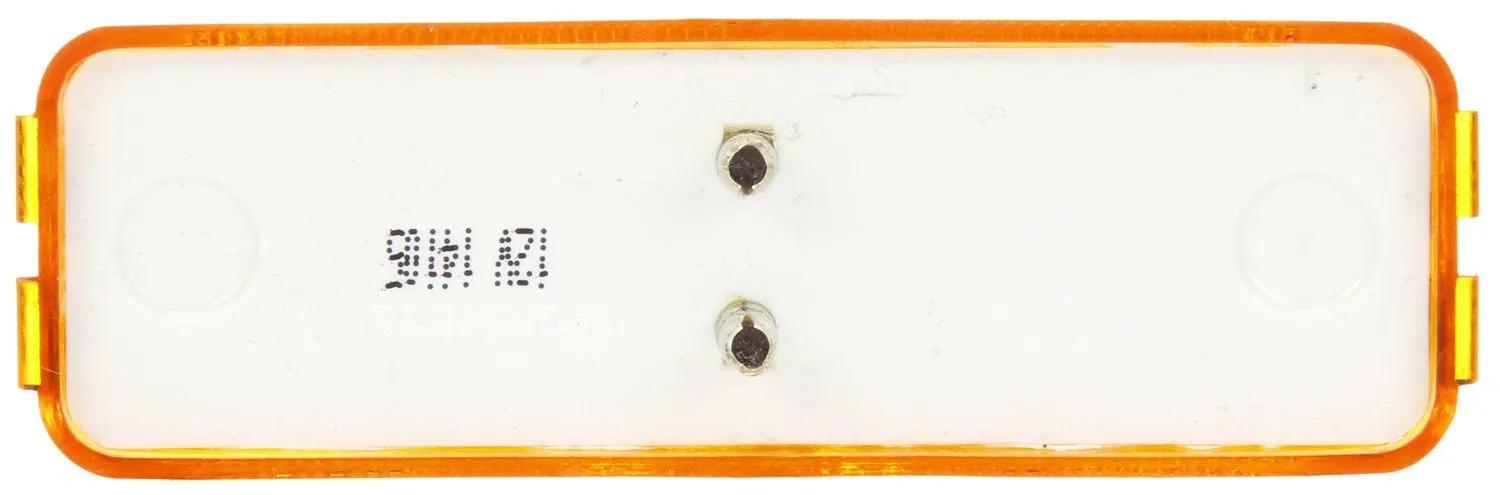

19 Series base mount marker clearance light featuring a yellow rectangular polycarbonate lens, 2 incandescent bulbs, 19 Series male pin connection, designed for 12V systems. Fits in limited mounting areas and most narrow header rails, mountable vertically or horizontally with snap-lock tabs for easy installation. Complies with FMVSS 108, CMVSS 108, DOT, and SAE standards.Marker Clearance Light, 2 Bulb, Incandescent Bulb, 19 Series Male Pin, Bracket, Polycarbonate, Yellow, 1.23 in H, 0.33 in L, Light Function: P2, P3, PC, 19 Series, Rectangular, 12 V, Warranty: 1 Year, 3.78 in W
Features & Benefits
- Designed to fit in limited mounting areas
- Fits in most narrow header rails
- Can be mounted vertically or horizontally
- Snap-lock tabs allow quick and easy installation
- Designed To Fit In Limited Mounting Areas & Narrow Rail Headers. Mount Vertical Or Horizontal, Snap-lock Tabs For Installation Ease, Upgrade To Led
- Suitable for PC requirements on a 45-degree angle when using base mounts
- Replaces Signal-Stat 1900 series
Specifications
| Bulb Type | Incandescent |
| Connection Type | 19 Series Male Pin |
| Contents | Marker Clearance Light |
| Depth | 53/64 in |
| Height | 1-15/64 in |
| Housing Color | Amber |
| Length | 3-25/32 in |
| Lens Color | Yellow |
| Material | Polycarbonate |
| Mounting Type | Bracket |
| Quantity | 10 |
| Shape | Rectangular |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Type | Marker Clearance Light |
| UPC | 735111044604 |
| Voltage Rating | 12 V |
| Warranty | 1 Year |
| Weight | 0.08 lb |
| Width | 3-25/32 in |
| Current Rating | 0.66 amp |
| Light Function | P2, P3, PC |
| Product Line | 19 Series |
| Product Category | Marker Clearance Light |
Interchanges & Equivalent parts:
| 1261900A |
| 154A |
| 1900A |
| 1900AD |
| 19200Y1 |
| 19200Y3 |
| 19200YP |
| 46743 |
| 46743-3 |
| 467433 |
| 501900A3 |
| HB9316A |
| TRU19200Y |
| 19200Y-TL |
| 22001007Y |
| 3099913 |
| 55620108 |
| 576-0101 |
| 80965 |
| 81759 |
| 8413-19200Y |
| LIT19200Y |
| MC-65AB |
| MTL01920000Y |
| OPTMC-65AB |
| RC CML65A |
| S19-AA00-1 |
| TL 19200Y |
| TL 19200Y |
| TL-19200Y |
| TLD19200Y |
| 013-00-012 |
| 1000-CML65A |
| 154R |
| 467435 |
| 800-200350A |
| CML65A |
| FLT223813R |
| FLTSE1040A |
| GRT46743 |
| LB046301 |
| LT19Y |
| M154A |
| MKR4730Y |
| PT1900A |
| SE1040A |
| TKL19200Y |
| TL19200Y |
| TRL1 |
| G272 |
