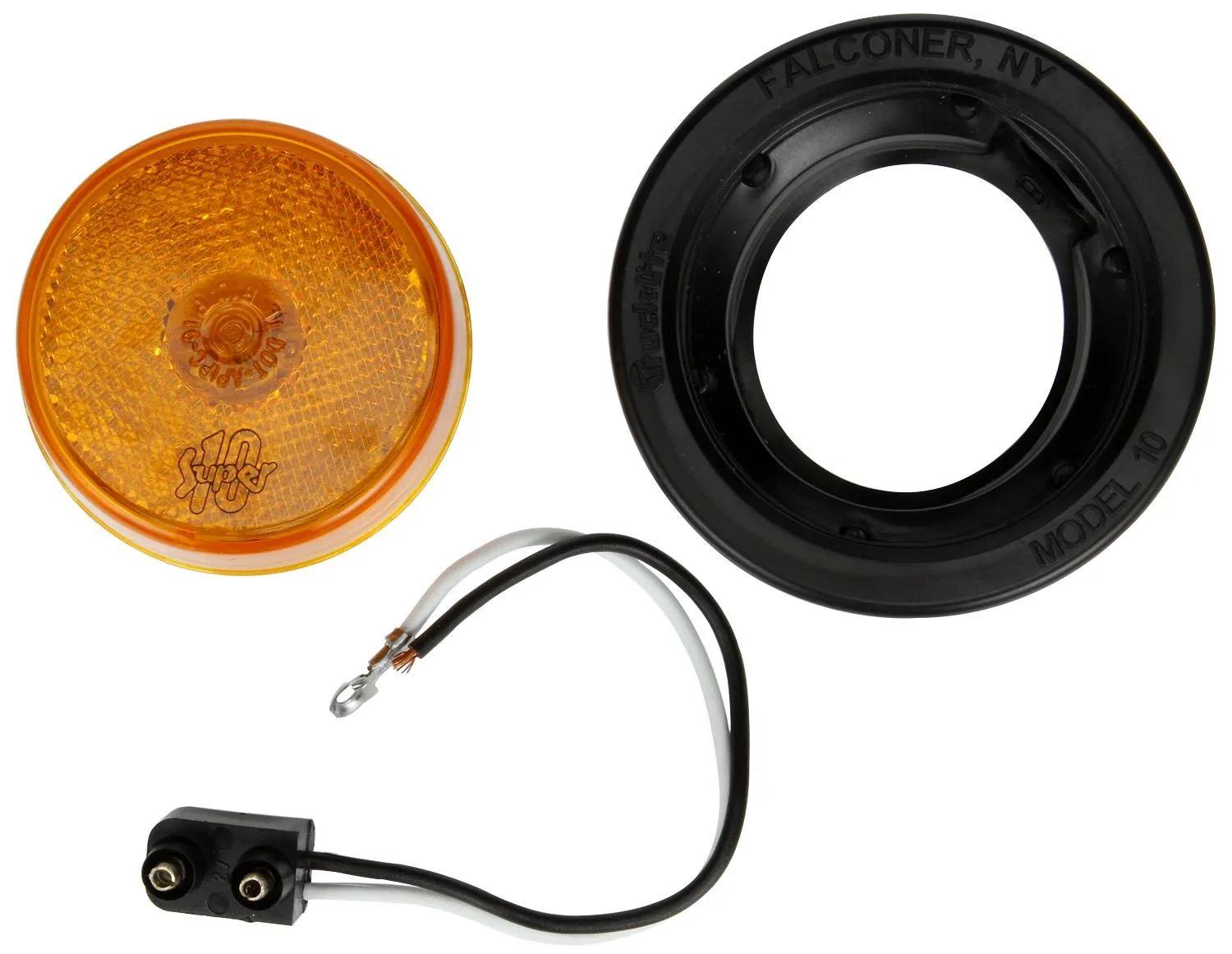

Marker Clearance Light, Amber & Yellow, Round
#TRL10028Y
Product Overview
Super 10, Incandescent, Yellow Round, 1 Bulb, Marker Clearance Light, PC, Black PVC Grommet Mount, PL-10, Ring Terminal/Stripped End, 12V, Kit
Features & Benefits
- Unique shock-mount extends bulb life
- 15,000-hour rated bulb life
- Sealed polycarbonate lens and housing
- Meets PC requirements on a 45-degree angle using all mounting devices
Specifications
| Color | Amber |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Lamp, Grommet, Plug |
| Current Major | 0.33 amp |
| Depth | 1 in (2.54 cm) |
| Diamond Shell (Y/N) | No |
| Height | 2-35/64 in (6.48 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount/Trim Material | PVC |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 2-35/64 in (6.48 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 841310028Y |
| TL10028Y |
| TLD10028Y |
| TRU10028Y |
| 8413-10028Y |
| LIT10028Y |
| TL 10028Y |

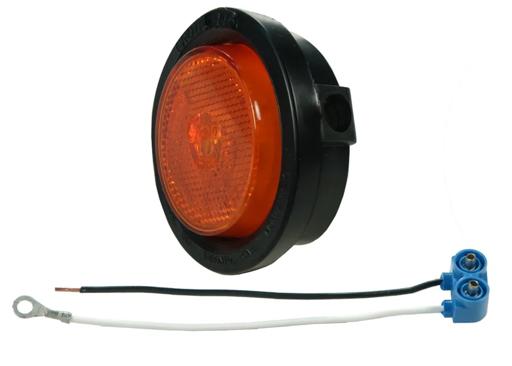

| 45073GR0 |
| 45073 |
| 10028Y |
| 45043 |
