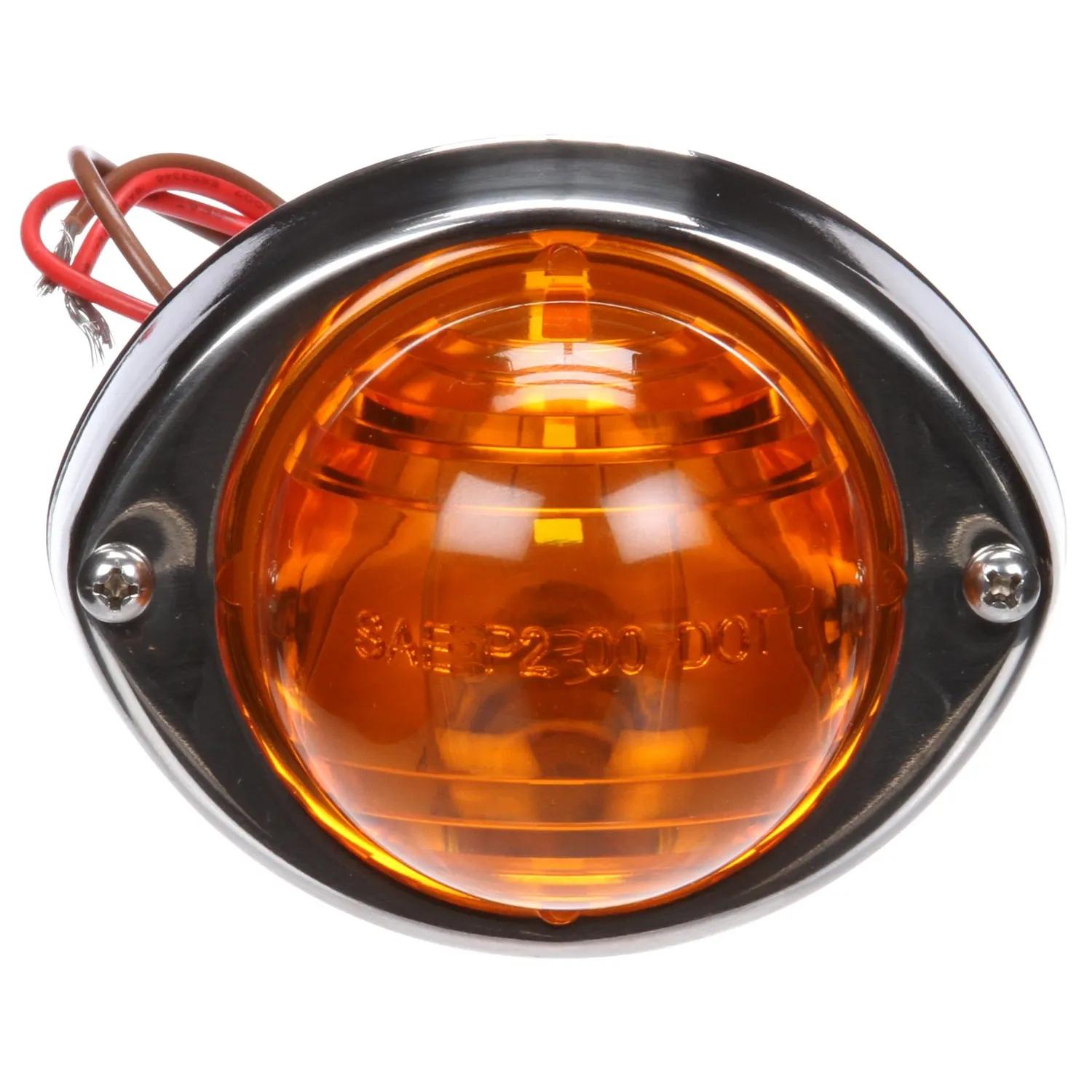

Marker Clearance Light, Amber & Yellow, Round
#TRL26390Y
Product Overview
26 Series, Incandescent, Yellow Round, 1 Bulb, Marker Clearance Light, P2, 2 Screw, Hardwired, Stripped End, 12V
Features & Benefits
- Popular in bus applications
- Provide marker and auxiliary side turn indicator functions
- Features stainless steel and 2 holes for #10 screws on 1625'' centers
- Clearance hole of 812 diameter required
- Wide range of applications
- Wide variety of lighting products
Specifications
| Audible (Y/N) | No |
| Color | Amber |
| Common Size | 2 in |
| Contents | Marker Clearance Light |
| Current Major | 0.27 amp |
| Depth | 2-31/32 in |
| Diamond Shell (Y/N) | Yes |
| Flasher Mechanism | Electro-Mechanical |
| Frequency | 393.7 |
| Height | 3-9/32 in |
| Housing Color | Silver |
| Kit (Y/N) | No |
| Length | 4-1/32 in |
| Lens Material | Acrylic |
| Material | Plastic |
| Mount Type | Surface Mount |
| Number of Lamps | 10 |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 26 Series |
| Shape | Round |
| Standard | FMVSS 108, DOT |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 4-1/32 in |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 602482 |
| TL26390Y |
| TLD26390Y |
| 26390Y |
| TRU26390Y |
| 8413-26390Y |
| LIT26390Y |
| TL 26390Y |
| TL 26390Y |
| 705238 |
