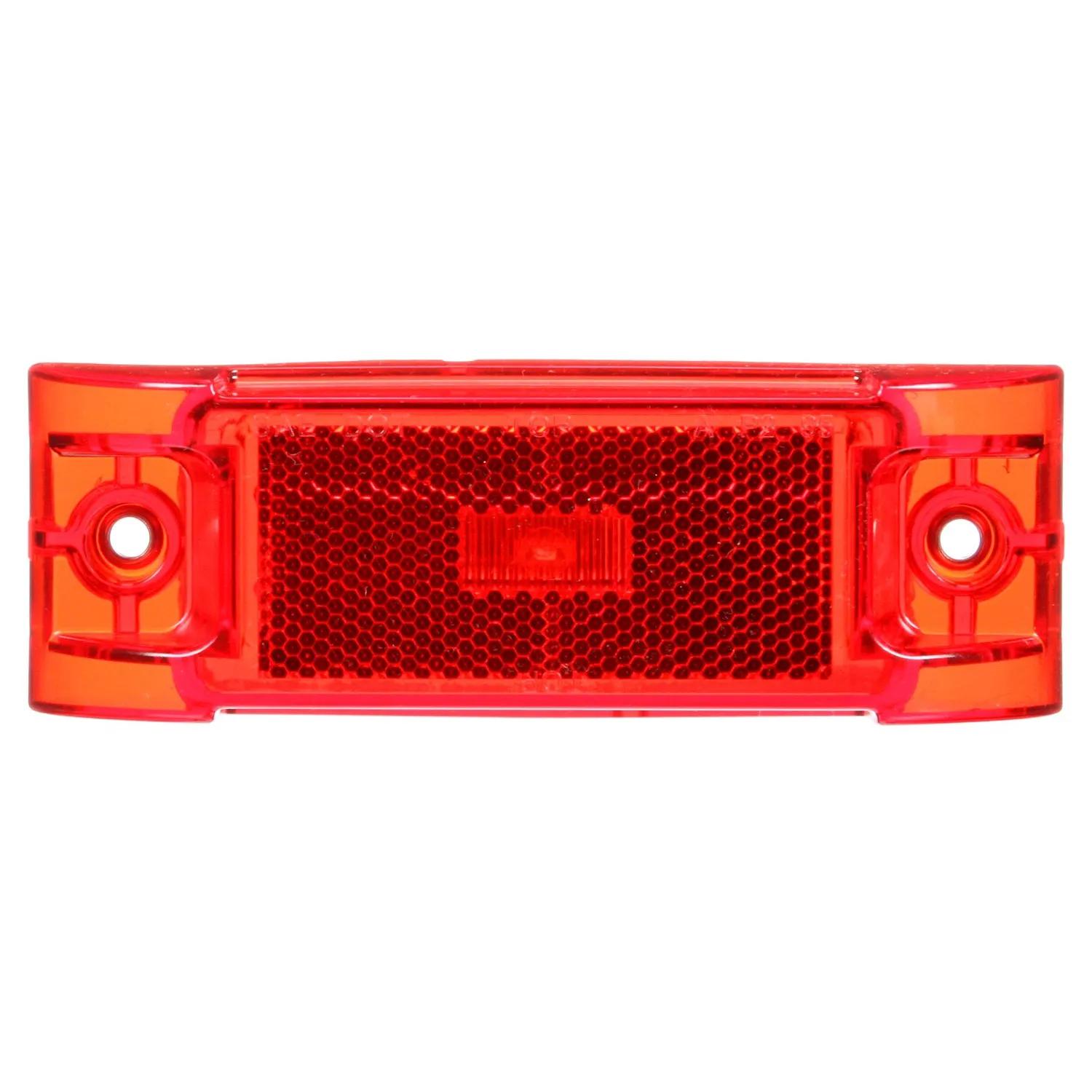

Marker Clearance Light, Red, Rectangular, 21 Series, LED, 1 Diode, Fit 'N Forget M/C, 12V
#TRL21251R
Product Overview
21 Series LED red rectangular marker clearance light with 1 diode, polycarbonate lens and housing, reflectorized, Fit 'N Forget M/C connection, 2 screw mounting, 12V operation.Marker Clearance Light, 1 Diode, LED Bulb, Fit 'N Forget M/C, 2 Screw, Polycarbonate, Red, 2.03 in H, 0.1 in L, Light Function: A, P2, PC, 21 Series, Rectangular, 12 V, Warranty: Limited Lifetime, 6 in W
Features & Benefits
- Innovative optic design allows one PC-rated lamp the ability to function as two
- Draws less current, allowing more power for other vehicle requirements
- Uses standard mounting holes and accessories
Specifications
| Angle de faisceau | 65° |
| Type d'ampoule | DEL |
| Bougie (cp) | 1 Diode |
| Type de connexion | Fit 'N Forget M/C |
| Contient | Feu de gabarit et d'encombrement |
| Major actuel | 0,1 A |
| Profondeur | 1-19/64 po |
| Coquille de diamant (O/N) | Non |
| Hauteur | 2-1/32 po |
| Couleur du boîtier | Rouge |
| Trousse (O/N) | Non |
| Longueur | 6 po |
| Couleur des lentilles | Rouge |
| Matériau de la lentille | Polycarbonate |
| Matériel | Polycarbonate |
| Type de fixation | À 2 vis |
| Type de support | Montage sur oeillet |
| Nombre de câbles | 2 |
| Quantité | 5 |
| Réfléchissant (O/N) | Oui |
| Forme | Rectangulaire |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | DEL |
| Type | Feu de gabarit et d'encombrement |
| UPC | 735111039952 |
| Voltage Rating | 12 V |
| Warranty | À vie limitée |
| Weight | 0,26 lb |
| Width | 6 po |
| Wire Gauge | 16 ga |
| Wire Length | 3 po |
| Current Rating | 0,06 A |
| Light Output Color | Red |
| Light Function | A, P2, PC |
| Product Line | Série 21 |
| Product Category | Feu de gabarit et d'encombrement |
Interchanges & Equivalent parts:
| 470723 |
| TL21251R |
| 21251R3 |
| 2150 |
| HB9007R |
| M1581R |
| 80995 |
| 8413-21251R |
| LIT21251R |
| TL 21251R |
| TL-21251R |
| TLD21251R |
| M188R |
| PTSM188R |
| TKL21251R |
| GRT47072 |
| GRTG2102 |
| LED21R |
| PTL2108R |
| 12711284 |
| 47072-3 |
