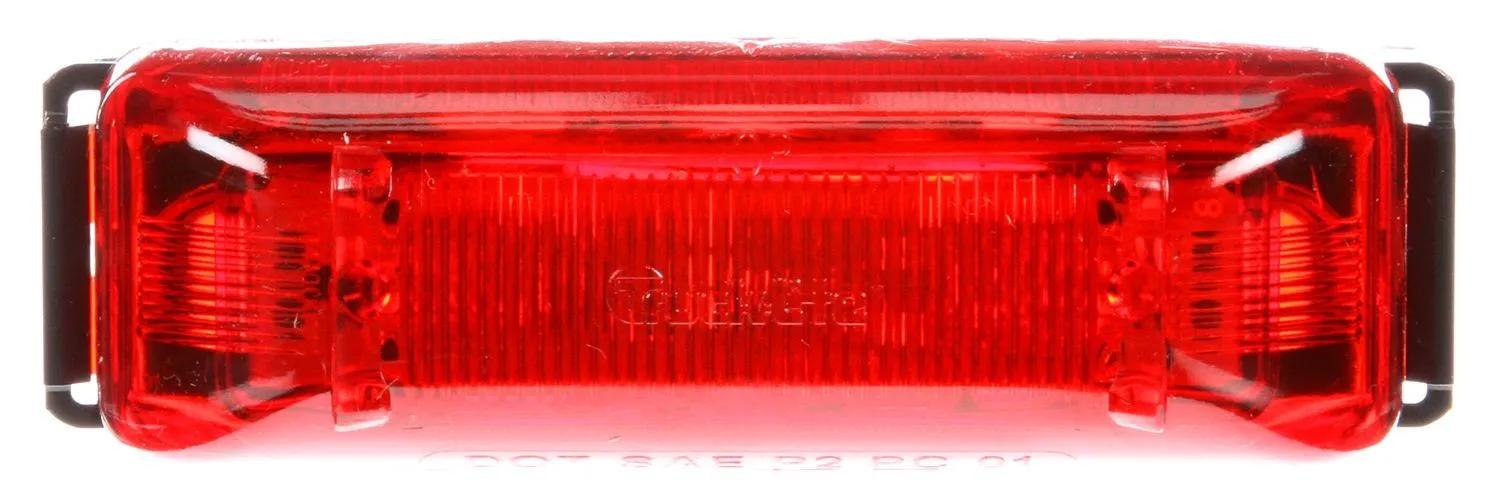

Marker Clearance Light, Red, Rectangular
#TRL19037R
Product Overview
19 Series, Base Mount, LED, Red Rectangular, 4 Diode, Marker Clearance Light, PC, Black ABS Bracket Mount, Fit 'N Forget M/C, .180 Bullet Terminal/Ring Terminal, 12V, Kit
Specifications
| Color | Red |
| Common Size | 1 in (2.54 cm) |
| Contents | Black Mount, Lamp, Plug |
| Current Major | 0.05 amp |
| Depth | 33/64 in (1.32 cm) |
| Diamond Shell (Y/N) | No |
| Fits Pigtail Part #(s) | 94718 |
| Height | 1-1/16 in (2.69 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| # Lamp Prongs | 2 |
| Lamp Type | Model 19 |
| Length | 3-25/32 in (9.6 cm) |
| Lens Height | 1-1/16 in (2.69 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 4-3/32 in (10.39 cm) |
| Material | Polycarbonate |
| Mount/Trim Material | ABS |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Packaging | Polybag |
| Plug Side One | Fit 'N Forget M/C |
| Plug Side Two | .180 Bullet |
| Product Type | Marker Clearance Light |
| Reflectorized (Y/N) | No |
| Series | 19 Series |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Weight | 0.4 lb (0.18 kg) |
| Width | 4-3/32 in (10.39 cm) |
| Wire Gauge | 16 ga |
