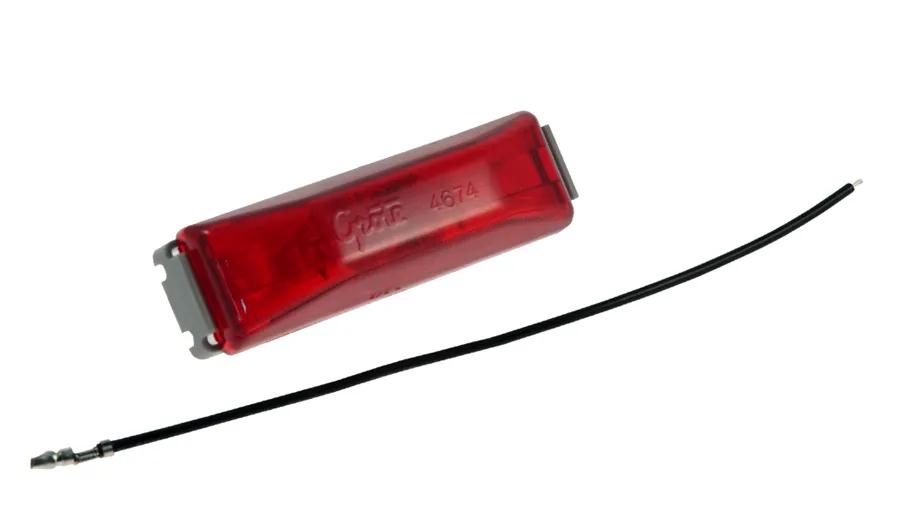

Marker Clearance Light, Red, Rectangular
#GRO45092
Product Overview
Rectangular, Double Bulb Lamp, 12 Volt Version Features A 12,000 + Hour Bulb
Features & Benefits
- Meets PC function only when mounted at a 45° angle
- Narrow mounting applications
- Uses double-seal UBS pigtail
- Rectangular, double bulb lamp
- Hermetic lens-to-housing seal
Specifications
| Ampères | 0.66 amp |
| Couleur | Red |
| Taille commune | 1 in (2.54 cm) |
| Contents | 46742 Lamp, 43850 Bracket |
| Current Major | 0.33 amp |
| Depth | 51/64 in (2.03 cm) |
| Diamond Shell (Y/N) | No |
| Function | P2, P3, PC |
| Height | 1-3/32 in (2.77 cm) |
| Housing Color | Gris |
| Kit (Y/N) | Yes |
| Length | 3-25/32 in (9.6 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Montage par support |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | Non |
| Series | 19 Series |
| Shape | Rectangle |
| Standard | FMVSS 108 |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| Volt | 12V |
| Width | 1-15/64 in (3.12 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 154KR |
| 1812420716 |
| 19002R1 |
| 19002R3 |
| 19009R1 |
| 19500R4 |
| 2637R |
| 45092-GL |
| 71-2207 |
| 71-2209 |
| 7376-45092 |
| 9561-3 |
| GRO 45092 |
| GRO45092 |
| KT2140R |
| LT19KR |
| TKL19002R |
| 150KR |
| ZBJ45092 |
| ZBJD45092 |
| MC67RB |
| MC67RBP |
| 0910A |
| 0920PT |
| 50-10202Y-3 |
| 19002R |
| 45092 |
