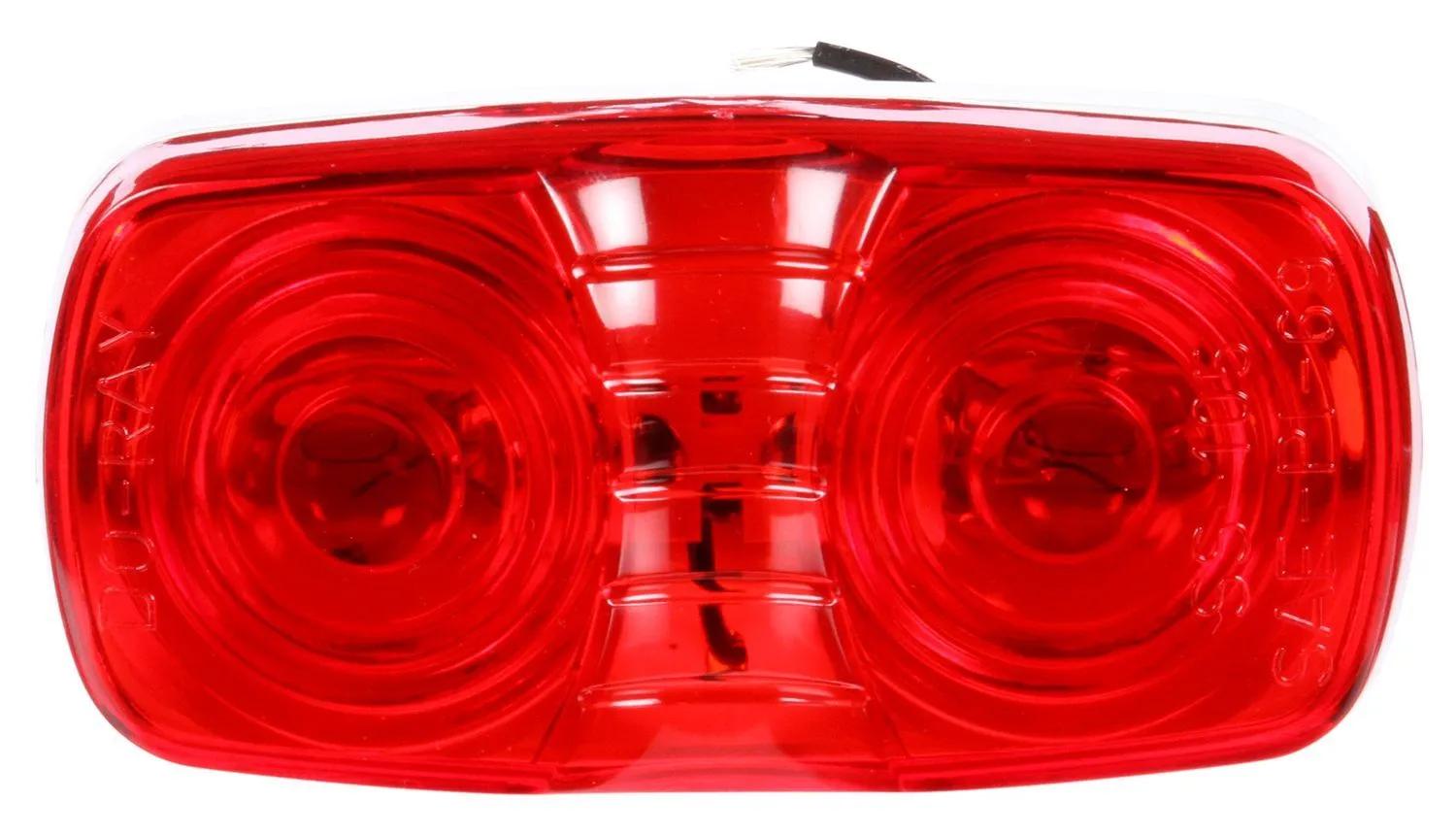

Marker Clearance Light, Red, Rectangular
#TRL1211
Product Overview
Signal-Stat, Permastat, Incandescent, Red Rectangular, 2 Bulb, Marker Clearance Light, P2, Bracket Mount, Hardwired, Blunt Cut, 12V
Features & Benefits
- High-impact Permastat housing protects against rust and corrosion
- Shock/Mount (1213 model) for maximum bulb life
- Snap-on lens makes bulb and lens replacement easy
- Two bulb design-if one burns out, the other remains lighted
Specifications
| Amps | 0.66 amp |
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.27 amp |
| Depth | 1-1/8 in (2.87 cm) |
| Diamond Shell (Y/N) | No |
| Function | P2, P3, PC, PC2 |
| Height | 2 in (5.08 cm) |
| Kit (Y/N) | No |
| Length | 4 in (10.16 cm) |
| Lens Material | Acrylic |
| Mount Type | Side Mount |
| Number Of Wires | 1 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | Signal-Stat |
| Shape | Rectangular |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 4 in (10.16 cm) |
| Wire Gauge | 18 ga |
| Wire Length | 3 in (7.62 cm) |
Interchanges & Equivalent parts:
| 1211-3 |
| 1211D |
| 26302R |
| TRU1211 |
| TRU26302R |
| 1211-TL |
| 1211S1G |
| 3099966 |
| 8413-1211 |
| KL-10102R |
| LIT1211 |
| M138B |
| SIG 1211 |
| TL 1211 |
| TL1211 |
| TLD1211 |
| 066-75-722 |
| 138R |
| 1812420720 |
| 467925 |
| GRT46792 |
| LB046502 |
| LT506R |
| M138R |
| ML2040R |
| PT2602R |
| T444BR |
| TKL1211 |
| 712112 |
