Marker Clearance Light, Red, Round, 10 Series, Incandescent, 12V, PL-10
#TRL10205R
Product Overview

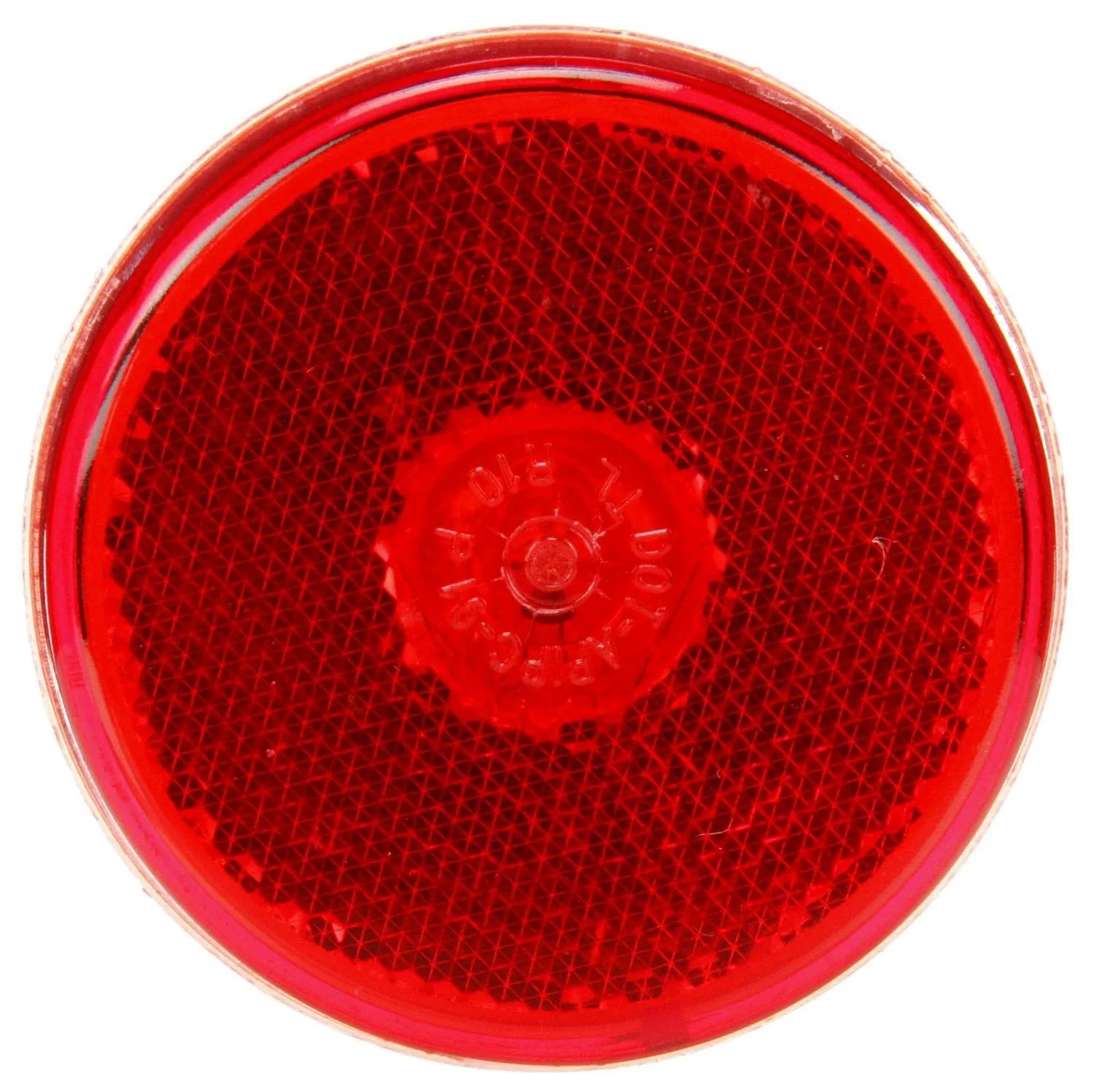

10 Series marker clearance light with a red round polycarbonate lens and housing. Features a single incandescent bulb rated for 15,000 hours, reflectorized lens, and operates at 12V. Designed for grommet mounting and meets PC requirements on a 45-degree angle with mounting devices #10708, #10720, #00803, or #00804. Replaces Signal Stat 1010 and 1011 series. Complies with FMVSS 108, CMVSS 108, DOT, and SAE standards.Marker Clearance Light, 1 Bulb, Incandescent Bulb, PL-10, Grommet, Polycarbonate, Red, 2.54 in H, 0.33 in L, Light Function: A, P2, PC, 10 Series, Round, 12 V, Warranty: 1 Year, 2.54 in W
Features & Benefits
- Lens and housing are sonically sealed
- High-impact polycarbonate construction
- 12V, 15,000-hour-rated bulb life
- Available in either 12V or 24V
- Meets PC requirement on a 45-degree angle in mounting devices #10708, #10720, #00803 or #00804
- Reflectorized Lens, Replaces Signal Stat #1011 Series, Upgrade To Led
- Replaces Signal Stat 1010 and 1011 series
Specifications
| Type d'ampoule | Incandescent |
| Type de connexion | PL-10 |
| Hauteur | 2-35/64 in |
| Cote IP | IP67 |
| Longueur | 2-1/2 po |
| Couleur des lentilles | Rouge |
| Material | Polycarbonate |
| Mounting System | Support en U |
| Mounting Type | Oeillet |
| # of Diodes | 9 |
| Quantity | 10 |
| Shape | Rond |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Type | Feu de gabarit et de dégagement |
| UPC | 735111044130 |
| Voltage Rating | 12 V |
| Warranty | 1 an |
| Weight | 0,09 lb |
| Width | 2-35/64 po |
| Current Rating | 0.33 A |
| Light Function | A, P2, PC |
| Product Line | Série 10 |
| Product Category | Feu de gabarit et de dégagement |
Interchanges & Equivalent parts:
| 1011-3 |
| 1011D |
| 10205R1 |
| 10205R3 |
| 10205RP |
| 45832 |
| 5010113 |
| TRU10205R |
| 10205R-TL |
| 16512042 |
| 22001015R |
| 3099902 |
| 3437 |
| 46001240 |
| 55620009 |
| 81750 |
| 8413-10205R |
| LIT10205R |
| MC-57RB |
| MTL01020500R |
| OPTMC-57RB |
| RC CML57R |
| SS1011 |
| TL 10205R |
| TL 10205R |
| TL10205R |
| TL10208R |
| TLD10205R |
| TLT 10205R |
| 067-76-022 |
| 067-76-722 |
| 1000-CML57R |
| 143R |
| 1812420713 |
| 458323 |
| 5710601 |
| CML57R |
| FLTSR2500R |
| GRT45812 |
| GRT45832 |
| LT11R |
| M143R |
| SR2500R |
| TKL10205R |
| TKL10208R |
| WA20207R |
| ZBJ45832 |
| ZKP143R |
| ZKP143RB |
| G1404 |
| PA10082 |
