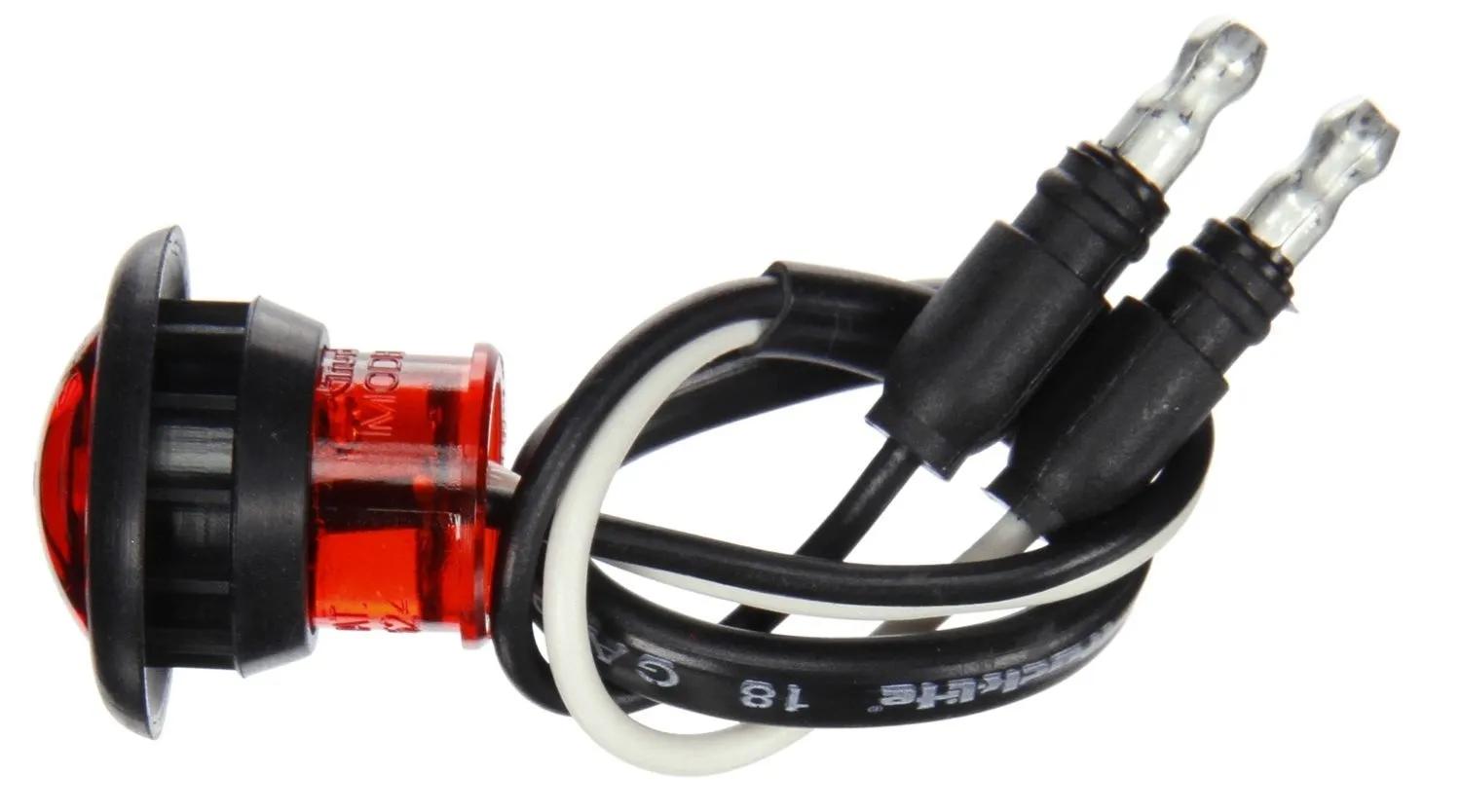

Marker Clearance Light, Red, Round, 33 Series, LED, 1 Diode, Hardwired, 12V
#TRL33050R
Product Overview
33 Series LED red round marker clearance light with 1 diode, P2 function, black rubber grommet mount, hardwired with .180 bullet terminal, 12V. Kit includes lamp and grommet. Features epoxy-sealed electronics for corrosion and moisture resistance, suitable for trailer and rear door structure design flexibility.Marker Clearance Light, 1 Diode, LED Bulb, Hardwired, Grommet, Polycarbonate, Red, 1.09 in H, 0.05 in L, Light Function: P2, 33 Series, Round, 0.75 in, 12 V, Warranty: Limited Lifetime, 1.09 in W
Features & Benefits
- US patent 7,658,524
- World's smallest LED marker lamp for the transportation industry
- Exceeds legal requirements
- Hardwired lamp design is easily retrofitted
- LEDs draw less current, allowing more power for other vehicle requirements
- World's Smalled Led Marker Lamp, Requires 3/4" Mounting Hole
- Electronics completely sealed in epoxy to resist corrosion and moisture
- Offers trailer engineers and manufacturers new trailer and rear door structure design flexibility
- Reduces lighting costs due to physical damage and heat entrapment
- Material thickness for flange is 0.040" - 0.250", material thickness for grommet is 0.125" - 0.250"
Specifications
| Bulb Type | LED |
| Candle Power (cp) | 1 Diode |
| Common Size | 3/4 in |
| Connection Type | Hardwired |
| Contents | Lamp, Grommet |
| Current Major | 2.95 amp |
| Current Minor | 1.45 amp |
| Depth | 63/64 in |
| Diamond Shell (Y/N) | No |
| Function | P2 |
| Heated | No |
| Height | 1-3/32 in |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 0.05 in |
| Lens Color | Red |
| Lens Height | 5 in |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mounting Type | Grommet |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Pattern | High |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | .180 Bullet, Standard |
| Quantity | 5 |
| Reflectorized (Y/N) | No |
| Series | 33 Series |
| Shape | Round |
| Size | 0.75 in |
| Standards | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| UPC | 735111134497 |
| VMRS Code | 034-004-253 |
| Voltage Rating | 12 V |
| Warranty | Limited Lifetime |
| Weight | 0.1 lb |
| Width | 1-3/32 in |
| Wire Gauge | 18 ga |
| Wire Length | 8 in |
| Current Rating | 0.05 amp |
| Light Output Color | Red |
| Light Function | P2 |
| Product Line | 33 Series |
| Product Category | Marker Clearance Light |
Interchanges & Equivalent parts:
| TRU33050R |
| 3305 |
| 47962GR0 |
| 49322GR0 |
| 8413-33050R |
| LIT33050R |
| TL 33050R |
| TL 33050R |
| TL33050R |
| TLD33050R |
| TLT 33050R |
| GRT47962 |
| GRT49322 |
| TKL33050R |
| TRL33050R |
| 5134313 |
| 49332 |
| 33050R3 |
| 33050RP |
| HB9073R |
