Marker Clearance Light, Red, Round
#TRL10389R
Product Overview

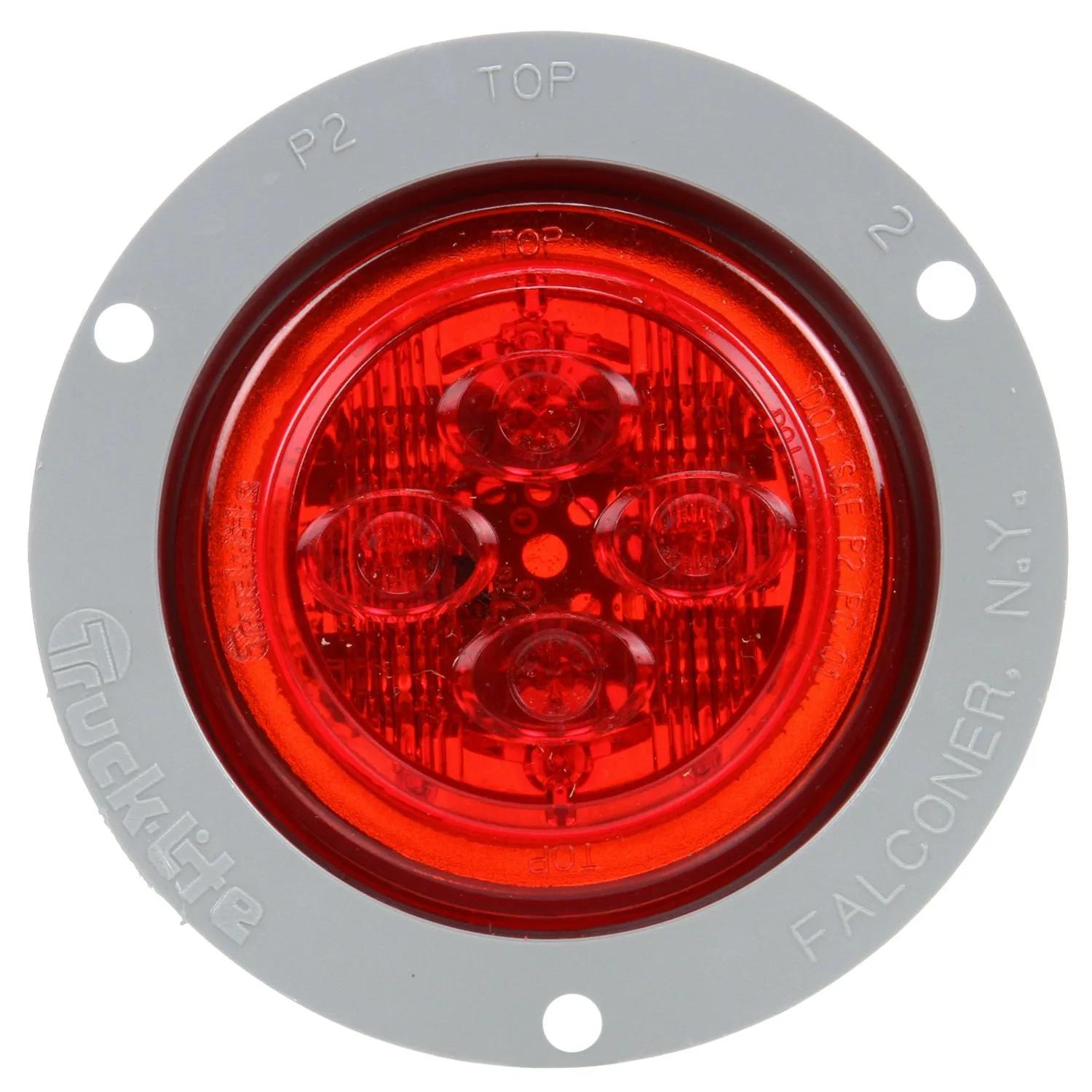

10 Series, Low Profile, LED, Red Round, 8 Diode, Marker Clearance Light, PC, Gray Polycarbonate Flange Mount, Fit 'N Forget M/C, 12V
Specifications
| Color | Red |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Lamp, Gray Flange |
| Current Major | 0.1 amp |
| Depth | 1-11/32 in (3.4 cm) |
| Diamond Shell (Y/N) | No |
| Fits Pigtail Part #(s) | Fit 'N Forget |
| Height | 3-1/2 in (8.89 cm) |
| Housing Color | Gray |
| Kit (Y/N) | No |
| # Lamp Prongs | 2 |
| Lamp Type | Model 10 |
| Length | 2-1/2 in (6.35 cm) |
| Lens Height | 2-51/64 in (7.11 cm) |
| Lens Material | Polycarbonate |
| Lens Width | 2-51/64 in (7.11 cm) |
| Material | Polycarbonate |
| Mount Type | Flush Mount |
| Packaging | Polybag |
| Plug Side One | No Plug |
| Plug Side Two | No Plug |
| Product Type | Marker Clearance Light |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| VMRS Code | 034-004-253 |
| Volt | 12 V |
| Weight | 0.4 lb (0.18 kg) |
| Width | 3-1/2 in (8.89 cm) |
Interchanges & Equivalent parts:
14200688, 10389R, 841310389R, 47372, TL10389R, TLD10389R, 211010389, 10389R, TL10389R, TRU10389R, LIT10389R, TL 10389R, TL10389R, TLD10389R, TLT 10389R, 47372GR0, M163FR, TKL10389R, 14200688, 47372, 211010389, TL10389R, TLD10389R, 10389R, 841310389R, TL10389R, 10389R, TRU10389R, TL10389R, LIT10389R, TL 10389R, TLT 10389R, TLD10389R, M163FR, TKL10389R, 47372GR0
