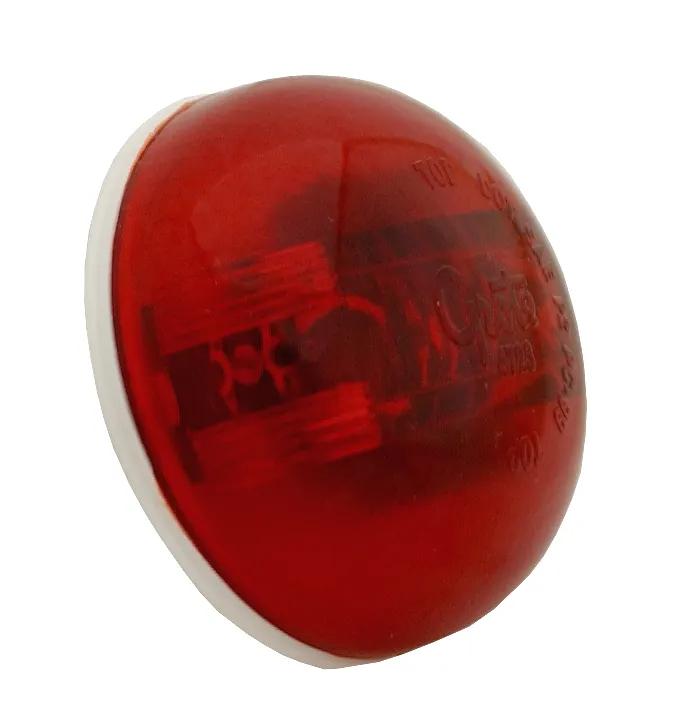

Marker Clearance Light, Red, Round
#GRO47232
Product Overview
Hermetic Lens-To-Housing Seal, Optic Lens Optimizes Photmetric Performance & Broadens Light Pattern, Allows Use Of 2 Fewer Lamps, Brakcets, & Pigtails, Bullet-Proof Potted For Total Circuit Board Protection, Uses Same UBS Double Seal Pigtail As Incandesce
Features & Benefits
- Available with lamp sealed to flange, for direct mounting in the side of a trailer without creating leaks in the trailer
- Encapsulant potting for total circuit board protection
- Tin-plated, solid brass terminals are sealed to housing, to resist corrosion and eliminate failure-causing leak paths
- Hermetic lens to housing seal
- Uses same UBS double seal pigtail as incandescent for a quick Plug-and-Go® retrofit
- Optic lens optimizes photometric performance and broadens light pattern
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Amps | 0.06 amp |
| Color | Red |
| Function | P2, P3, PC |
| Length | 6 in (15.24 cm) |
| Mount Type | Grommet or Bracket Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Shape | Round |
| Standard | FMVSS 108 |
| Technology | LED |
| Type | Marker Clearance Light |
| Volt | 12V |
Interchanges & Equivalent parts:
| 47232 |
| 10088RTLT |
| 10090RTLT |
| 10275R3 |
| 10275Y3 |
| 10286R3 |
| 10375R3 |
| 163R |
| 47232-GL |
| 47232GR0 |
| 7376-47232 |
| 81203 |
| GR47232 |
| GRO 47232 |
| GRO47232 |
| M163R |
| TKL10090R |
| TKL10275R |
| TKL10286R |
| TKL10375R |
| TKL10385R |
| ZBJ47232 |
| ZBJD47232 |
| M11260R |
| 725218 |
| 8-1132 |
| 8-1470 |
| 8-1471 |
| 8-2025 |
| 8-2111 |
| 10286R |
