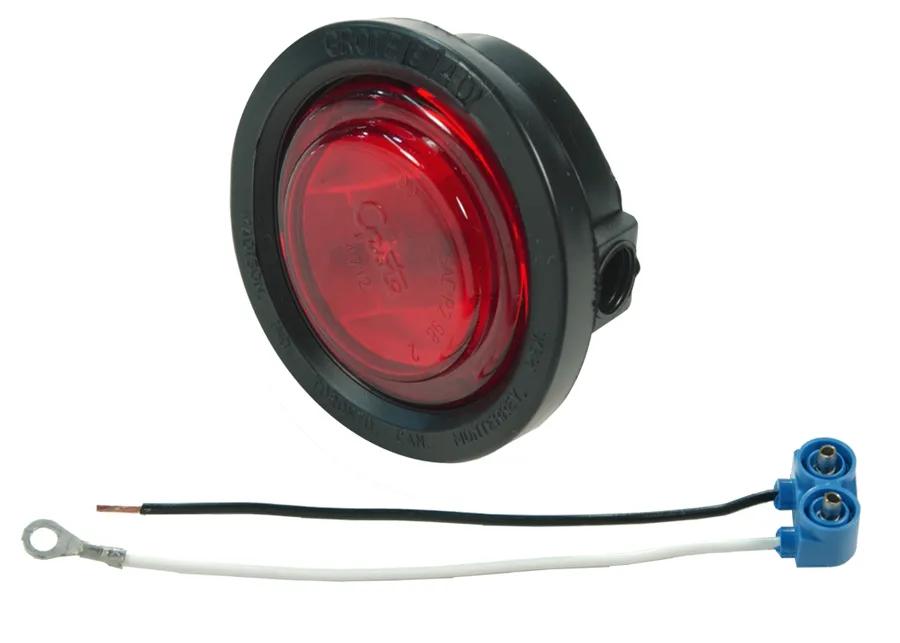

Marker Clearance Light, Red, Round
#GRO47472
Product Overview
Bullet-Proof Potted For Total Circuit Board Protection, Hermetic Lens-To-Housing Seal, Uses Same UBS Double Seal Pigtail As Incandescent Version For A Quick Plug-&-Go Retrofit, Tin-Plated, Solid Brass Terminals Are Sealed To Housing
Features & Benefits
- Fits popular grommets and pigtails seamlessly
- Tin-plated, solid brass terminals resist corrosion
- Hermetic lens-to-housing seal for maximum durability
- Encapsulant potting protects circuit board completely
- Manufactured to Meet or Exceed O.E.M. Specifications in Function, Form & Fit.
Specifications
| Amps | 0.06 amp |
| Color | Red |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Lamp, Grommet, Plug |
| Current Major | 0.03 amp |
| Depth | 1-13/32 in (3.58 cm) |
| Diamond Shell (Y/N) | No |
| Function | P2 |
| Height | 3-1/2 in (8.89 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Grommet Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Round |
| Standard | FMVSS 108 |
| Technology | LED |
| Type | Marker Clearance Light |
| Volt | 12V |
| Width | 2-1/2 in (6.35 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 10050R |
| 10050R3 |
| V162KR |
| 47472 |
| 10050R1 |
| 10051R1 |
| 127-17004KR |
| 47472GR0 |
| 7376-47472 |
| GRO 47472 |
| GRO47472 |
| KTL2500-4R |
| TKL10051R |
| ZBJ47472 |
| ZBJD47472 |
| TE47472 |
| 727666 |
| 3-503-100 |
| 3-503-250 |
| 81167S |
| 44439C |
