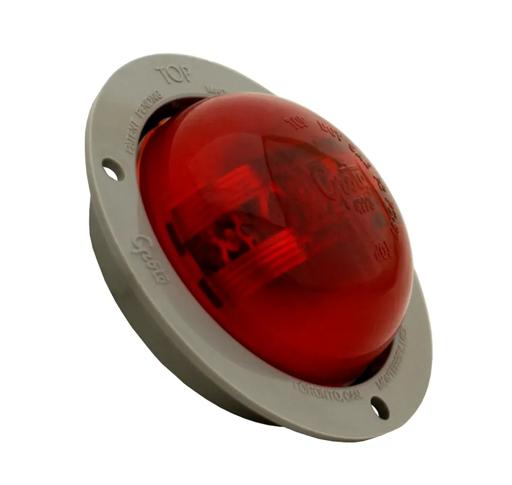

Marker Clearance Light, Red, Round
#TRL10279R
Product Overview
10 Series, High Profile, LED, Red Round, 8 Diode, Marker Clearance Light, PC, Gray Polycarbonate Flange Mount, PL-10, 12V
Features & Benefits
- SAE PC Rated, allowing combined marker & clearance applications
- High-Profile design increases light output and improves visibility of vehicle. Most Advanced and cost effective 2.5" Marker & Clearance light on the market.
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
Specifications
| Amps | 0.06 amp |
| Color | Red |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Lamp, Flange |
| Current Major | 0.1 amp |
| Depth | 1-1/2 in (3.81 cm) |
| Diamond Shell (Y/N) | No |
| Function | PC, P2, P3, PC2 |
| Height | 3-1/2 in (8.89 cm) |
| Housing Color | Gray |
| Kit (Y/N) | No |
| Length | 2-1/2 in (6.35 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Flange Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-10 |
| Reflectorized (Y/N) | No |
| Series | 10 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 3-1/2 in (8.89 cm) |
Interchanges & Equivalent parts:
| 10009776 |
| 41312533 |
| 41315009 |
| 14200638 |
| 10279R |
| 1LHT00046 |
| 602932110 |
| 841310279R |
| 703051053 |
| 5092200 |
| 94890270 |
| TL10279R |
| HT50601591 |
| TLD10279R |
| M163FR |
| TRU10279R |
| 10279R-TL |
| 8413-10279R |
| 85101790 |
| LIT10279R |
| M197FR |
| TL 10279R |
| TL 10279R |
| TL-10279R |
| TLT 10279R |
| 47372GR0 |
| TKL10279R |
| 47372 |
| G2724 |
