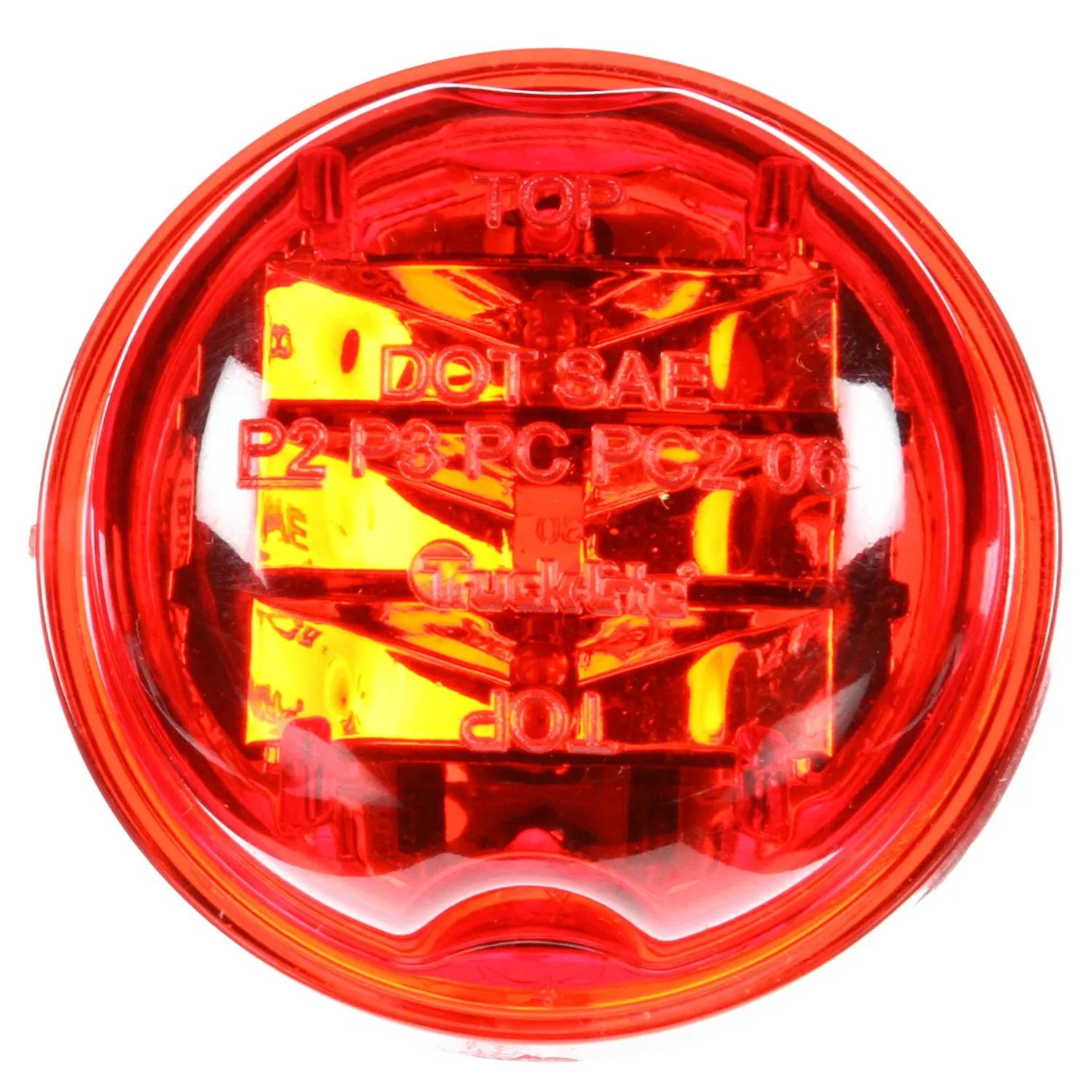

Marker Clearance Light, Red, Round
#TRL30275R
Product Overview
30 Series, High Profile, LED, Red Round, 8 Diode, Marker Clearance Light, PC, PL-10, 12V
Features & Benefits
- SAE PC Rated, allowing combined marker & clearance applications
- High-Profile design increases light output and improves visibility of vehicle. Most Advanced and cost effective 2" Marker & Clearance light on the market.
- Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
Specifications
| Amps | 0.04 amp |
| Color | Red |
| Common Size | 2-1/2 in (6.35 cm) |
| Contents | Marker Clearance Light |
| Current Major | 0.1 amp |
| Depth | 1-1/2 in (3.81 cm) |
| Diamond Shell (Y/N) | No |
| Function | P2 |
| Height | 2-15/64 in (5.66 cm) |
| Kit (Y/N) | No |
| Length | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Grommet or Bracket Mount |
| Number Of Wires | 2 |
| Reflectorized (Y/N) | No |
| Series | 30 Series |
| Shape | Round |
| Standard | FMVSS 18 |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-253 |
| Volt | 12V |
| Width | 2-15/64 in (5.66 cm) |
Interchanges & Equivalent parts:
| 14200325 |
| 30275R |
| 812340 |
| 231863 |
| 705201377 |

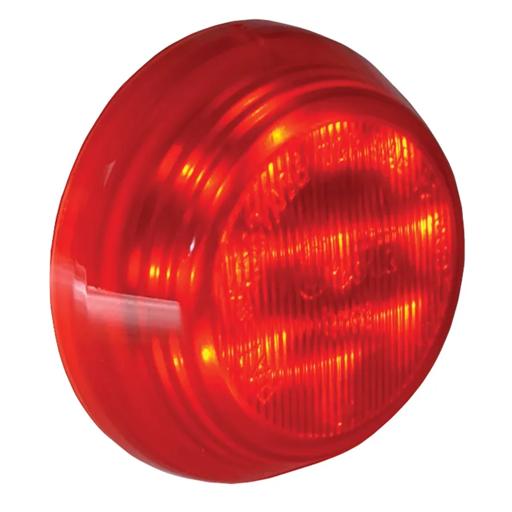

| G1092 |
| T30275R |
| TKL30275R |
| HT50601690 |
| TL30275R |
| TLD30275R |
| TRU30275R |
| M165R |
| TL 30275R |
| 10018430 |
| 41315007 |
| 841330275R |
| 30275R-TL |
| 8413-30275R |
| 85101803 |
| LED30PCR |
| LIT30275R |
| M199R |
| TL 30275R |
| TLT 30275R |
| 46132GR0 |
| G2727 |
