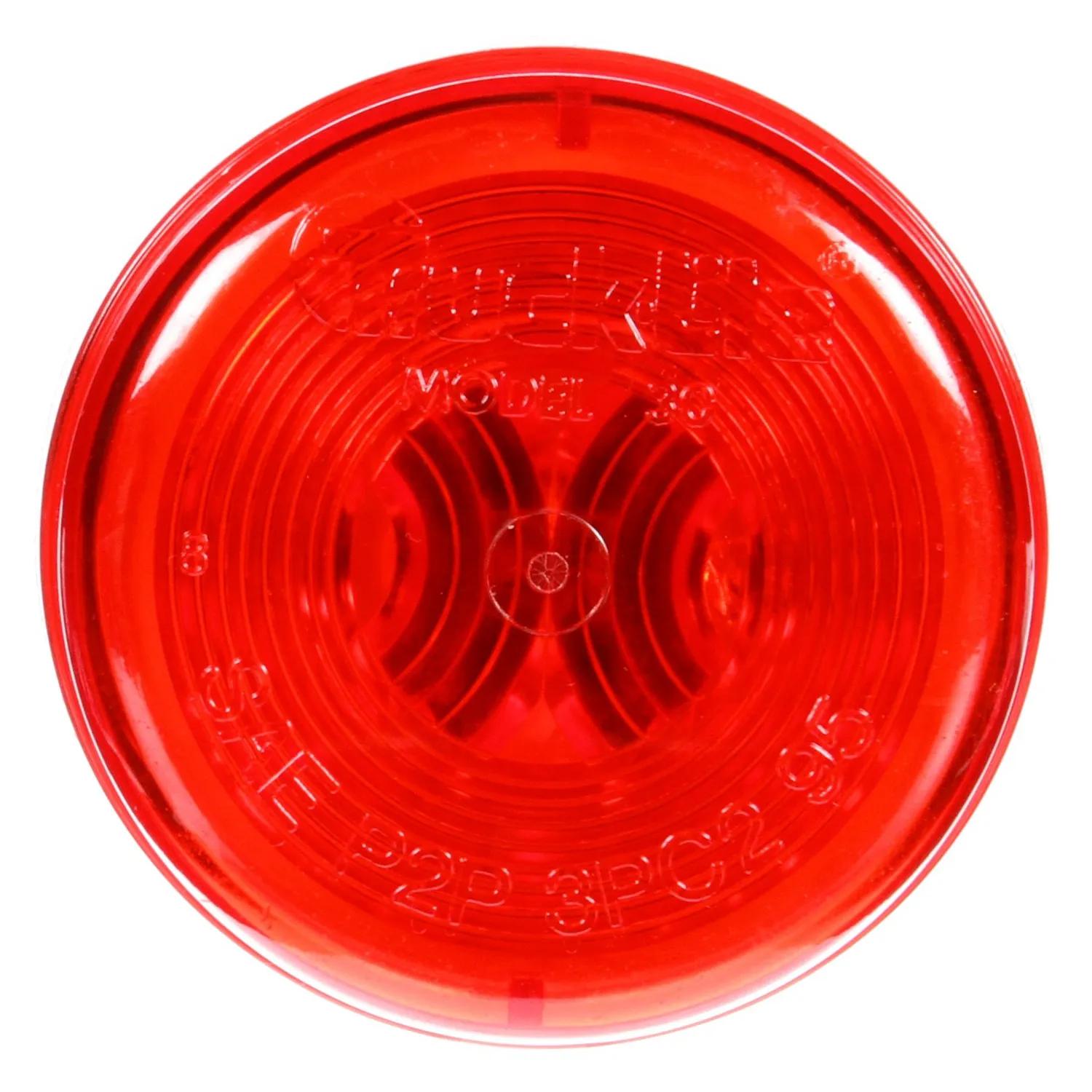

Marker Clearance Light, Red, Round
#TRL30503R
Product Overview

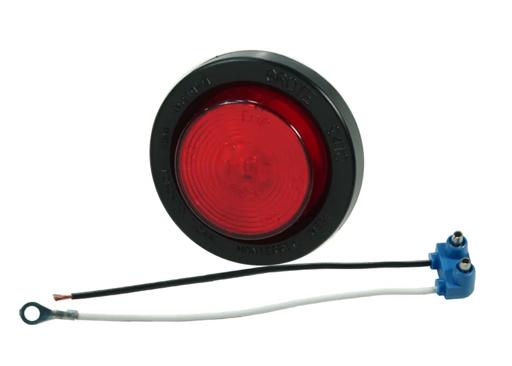

30 Series, Incandescent, Red Round, 1 Bulb, Marker Clearance Light, PC, Black PVC Grommet Mount, PL-10, Ring Terminal/Stripped End, 12V, Kit
Features & Benefits
- Wabash and Monon replacement
- 'ABS'' version complies with FMVSS 108 requirement for ABS malfunction indicator lamp on trailer and ABS braking systems
- 12V, 15,000-hour-rated bulb life
Specifications
| Amps | 0.33 amp |
| Color | Red |
| Common Size | 2 in (5.08 cm) |
| Contents | Lamp, Grommet, Plug |
| Current Major | 0.33 amp |
| Depth | 11/16 in (1.75 cm) |
| Diamond Shell (Y/N) | No |
| Function | P2, P3, PC, PC2 |
| Height | 2 in (5.08 cm) |
| Housing Color | Black |
| Kit (Y/N) | Yes |
| Length | 2 in (5.08 cm) |
| Lens Material | Polycarbonate |
| Material | Polycarbonate |
| Mount/Trim Material | PVC |
| Mount Type | Twist-On Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-10, Female |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | No |
| Series | 30 Series |
| Shape | Round |
| Standard | FMVSS 108, CMVSS 108, DOT, SAE |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 2 in (5.08 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 33316 |
| 4506267050 |
| 30503R |
| 5251958 |
| 1TL30503R |
| 64898 |
| 394 |
| 5041655 |
| 841330503R |
| 40025 |
| 8029A32101 |
| FPM637203 |
| HT50602447 |
| TL30503R |
| TLD30503R |
| PT3000RKIT |
| TRU30503R |
| LT30KR |
| 26771 |
| 712298 |
| 068-00-122 |
| 30503R-TL |
| 3946849 |
| 800-250200R |
| 8413-30503R |
| LIT30503R |
| TL 30503R |
| TL 30503R |
| TL-30503R |
| 45062GR0 |
| FLTKT3205R |
| KT3205R |
| M146KR |
| PT3000R-KIT |
| 1261030KR |
| 45062 |
| 601182 |
| 3550308 |
