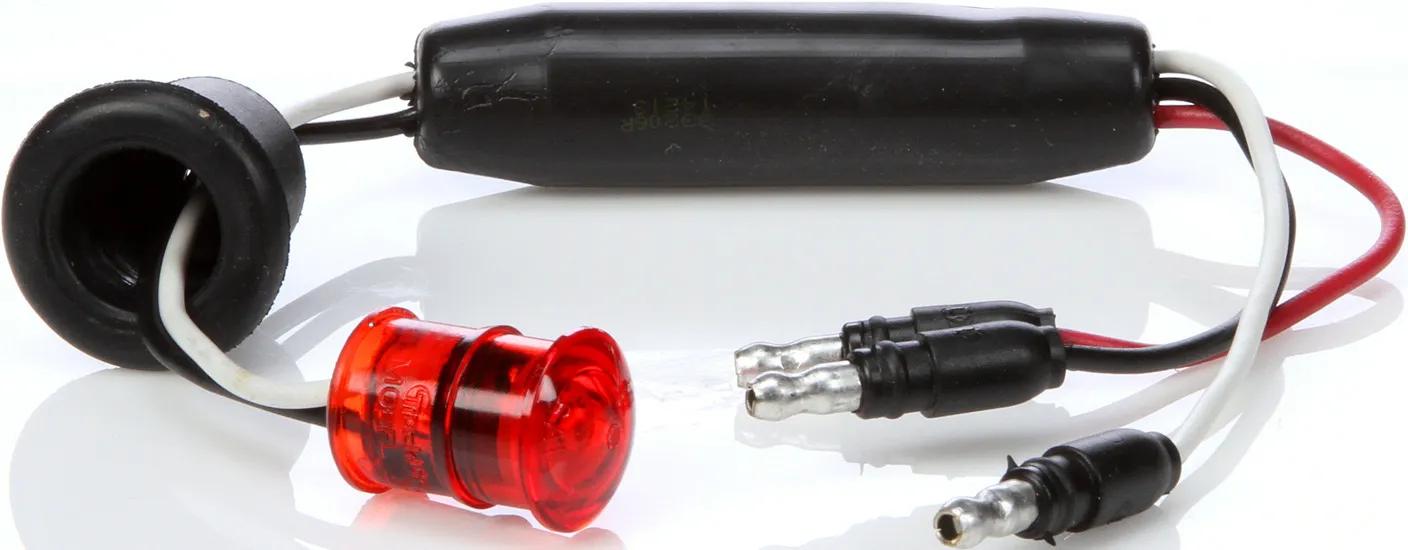

Marker Clearance Light, Red, Round
#TRL33206R
Product Overview
Dual function, 33 Series, LED, Red Round, 1 Diodes, Marker Clearance Light, P2, Black Rubber Closed Back Grommet, Hardwired, .180 Bullet Terminal, 12V, Kit
Features & Benefits
- Provides Increased Visibility When Bracking Or Turning
- Functions As A Marker, Auxiliary Turn, & Auxiliary Stop When Properly Installed
- Best In Class Auxiliary Brake Function Is Seven Times Brighter Than Marker Function
Specifications
| Ampères | 0.01 amp to 0.05 amp |
| Couleur | Rouge |
| Taille commune | 3/4 in (1.91 cm) |
| Contient | Lampe, montage et prise |
| Major actuel | 0,17 amp |
| Mineure actuelle | 0,02 amp |
| Profondeur | 11-1/2 in (29.21 cm) |
| Diamond Shell (Y/N) | Non |
| Function | P2 |
| Height | 11-1/2 in (29.21 cm) |
| Housing Color | Noir |
| Kit (Y/N) | Yes |
| Lens Material | Polycarbonate |
| Material | Caoutchouc |
| Mount Type | Montage à oeillet |
| Number Of Wires | 3 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | .180 Bullet, Standard |
| Reflectorized (Y/N) | Non |
| Series | 33 Series |
| Shape | Rond |
| Standard | FMVSS 108, NSVAC 108, DOT, SAE |
| Technology | LED |
| Type | Marker Clearance Light |
| VMRS Code | 034-004-021 |
| Volt | 12V |
| Width | 1-3/32 in (2.77 cm) |
| Wire Gauge | 18 ga |
Interchanges & Equivalent parts:
| 33206R |
| 8413-33206R |
