Marker Clearance Light, Red, Round
#TRL33207R
Product Overview

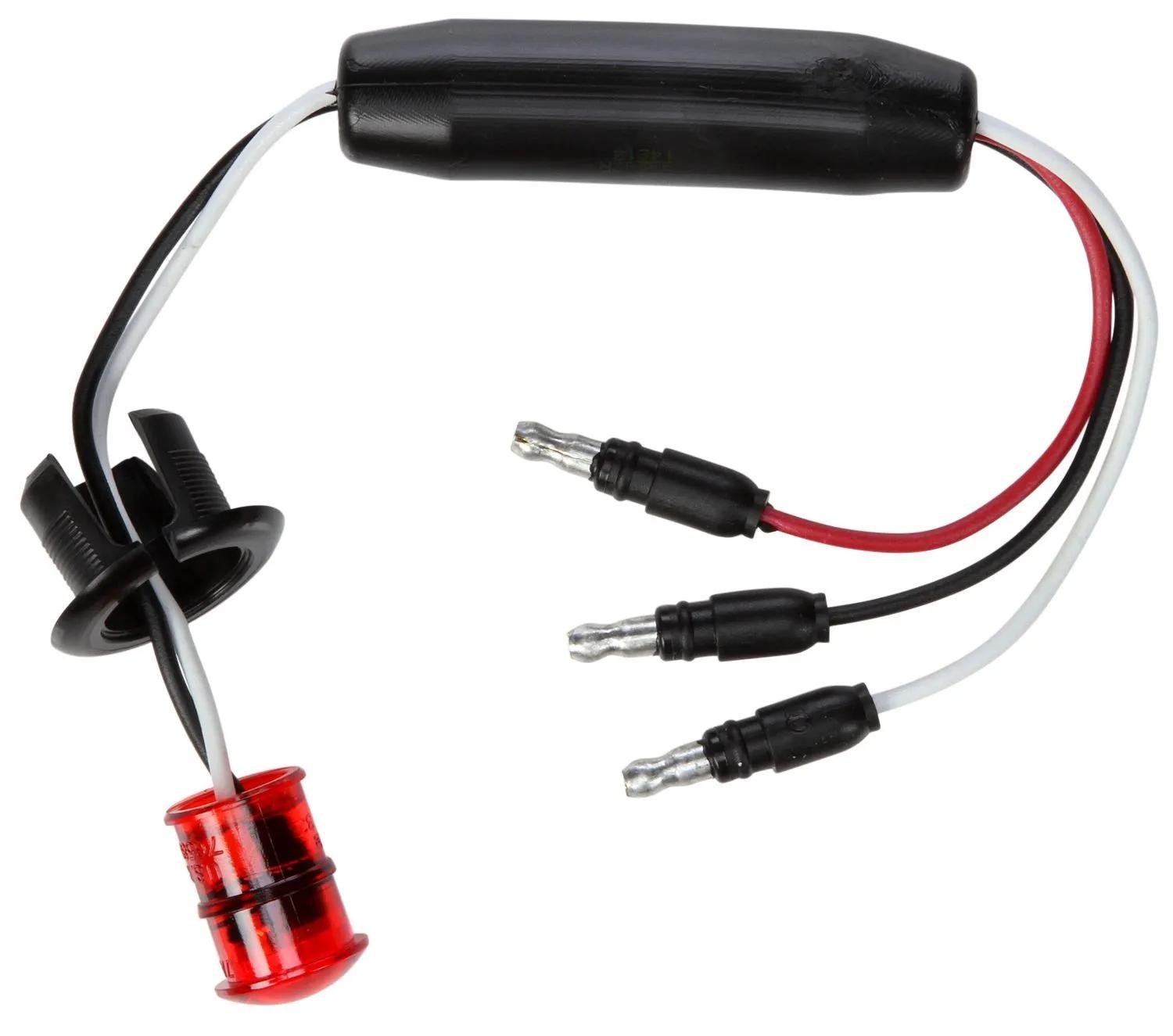

Dual function, 33 Series, LED, Red Round, 1 Diodes, Marker Clearance Light, P2, Black Nylon Flange, Hardwired, .180 Bullet Terminal, 12V
Features & Benefits
- Provides Increased Visibility When Bracking Or Turning
- Functions As A Marker, Auxiliary Turn, & Auxiliary Stop When Properly Installed
- Best In Class Auxiliary Brake Function Is Seven Times Brighter Than Marker Function
Specifications
| Couleur | Rouge |
| Taille commune | 3/4 in (1.91 cm) |
| Contient | Lampe, montage et prise |
| Major actuel | 0,17 amp |
| Mineure actuelle | 0,02 amp |
| Profondeur | 11-1/2 in (29.21 cm) |
| Coquille de diamant (O/N) | Non |
| Hauteur | 11-1/2 in (29.21 cm) |
| Couleur du boîtier | Noir |
| Trousse (O/N) | No |
| Longueur | 3/4 in (1.91 cm) |
| Matériau de la lentille | Polycarbonate |
| Matériel | Polycarbonate |
| Matériau de montage/garniture | Nylon |
| Type de support | Montage à bride |
| Nombre de câbles | 3 |
| Fiche #1 | PL-2 (Stripped End) |
| Fiche #2 | .180 Bullet, Standard |
| Réfléchissant (O/N) | Non |
| Séries | 33 Series |
| Forme | Rond |
| Standard | FMVSS 108, NSVAC 108, DOT, SAE |
| Technologie | LED |
| Type | Marker Clearance Light |
| Code VMRS | 034-004-021 |
| Volt | 12V |
| Largeur | 1-3/32 in (2.77 cm) |
| Calibre de(s) fil(s) | 18 ga |
Interchanges & Equivalent parts:
| 33207R |
| TL 33207R |
