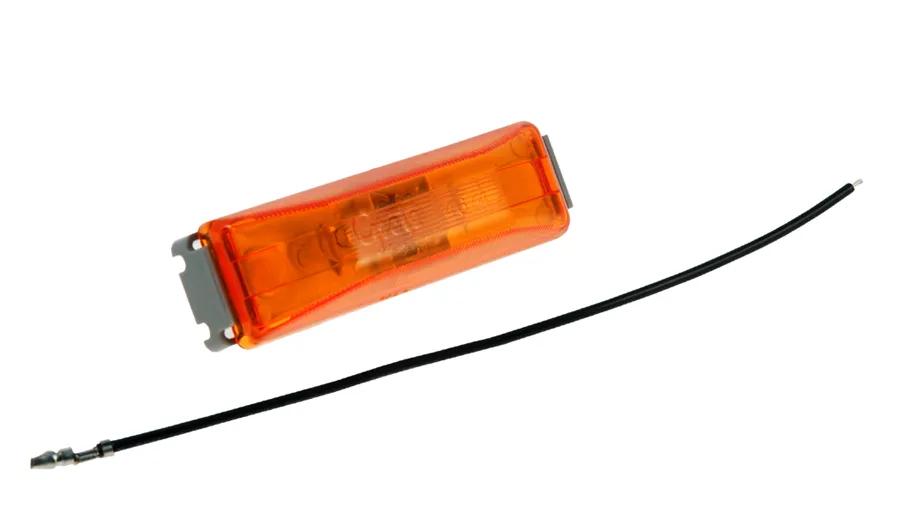

Marker Clearance Light, Yellow, Rectangular
#GRO45093
Product Overview
Rectangular, Double Bulb Lamp, 12 Volt Version Features A 12,000 + Hour Bulb
Features & Benefits
- Meets PC function only when mounted at a 45° angle
- Narrow mounting applications
- Uses double-seal UBS pigtail
- Rectangular, double bulb lamp
- Hermetic lens-to-housing seal
Specifications
| Ampères | 0.66 amp |
| Couleur | Amber |
| Taille commune | 1 in (2.54 cm) |
| Contient | 46743 Lamp, 43850 Bracket |
| Major actuel | 0.33 amp |
| Profondeur | 51/64 in (2.03 cm) |
| Coquille de diamant (O/N) | No |
| Fonction | P2, P3, PC |
| Hauteur | 1-3/32 in (2.77 cm) |
| Couleur du boîtier | Gray |
| Trousse (O/N) | Yes |
| Longueur | 3-25/32 in (9.6 cm) |
| Matériau de la lentille | Polycarbonate |
| Material | Polycarbonate |
| Mount Type | Bracket Mount |
| Number Of Wires | 2 |
| Plug Side One | PL-2 (Stripped End) |
| Plug Side Two | PL-2 (Stripped End) |
| Reflectorized (Y/N) | Non |
| Series | 19 Series |
| Shape | Rectangle |
| Standard | FMVSS 108 |
| Technology | Incandescent |
| Type | Marker Clearance Light |
| Volt | 12V |
| Width | 1-15/64 in (3.12 cm) |
| Wire Gauge | 16 ga |
Interchanges & Equivalent parts:
| 19002Y |
| 45093 |
| 154KA |
| 1812420864 |
| 19002Y1 |
| 19002Y3 |
| 19009Y1 |
| 19500Y4 |
| 2637A |
| 45093-GL |
| 45093GR0 |
| 71-2208 |
| 71-2210 |
| 7376-45093 |
| 9560-3 |
| GRO 45093 |
| GRO45093 |
| KT2140A |
| LT19KY |
| TKL19002Y |
| 150KA |
| ZBJ45093 |
| ZBJD45093 |
| MC67AB |
| MC67ABP |
| 0915PT |
| 0950C |
| 5010205R3 |
