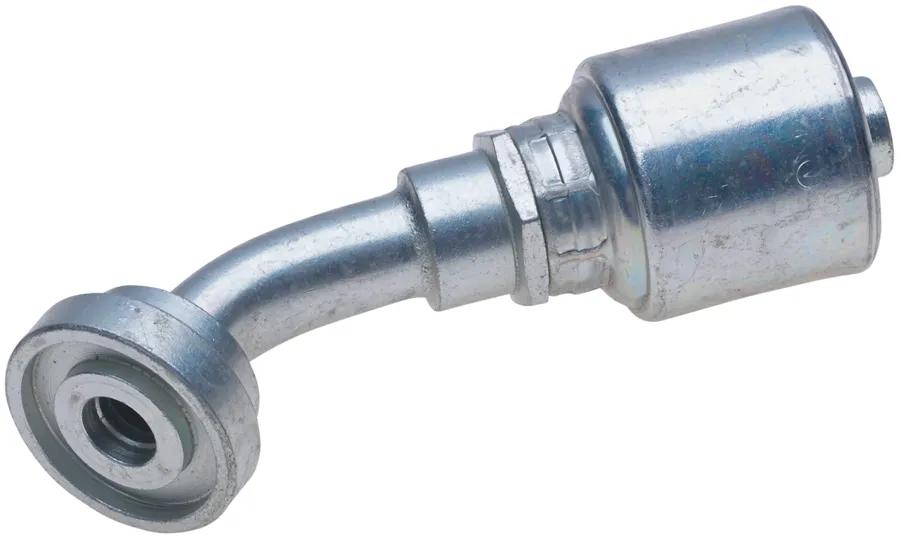

MegaCrimp Code 61 O-Ring Flange, 45*, 10G-12FL45M
#GATG25307-1012
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 45 deg |
| Description d'accouplement | MegaCrimp Code 61 O-Ring Flange - 45 Bent Tube |
| Cut Off (in) – C | 2-61/64 po (7,49 cm) |
| Diameter | 1-1/2 po (3,81 cm) |
| Drop (in.) | 1-1/32 po (2,62 cm) |
| Flange Head Thickness (in) – F | 17/64 po (0,69 cm) |
| Hose Recommendation | Peut s'adapter à différents diamètres extérieurs de tuyaux sur des tuyaux hydrauliques tressés à un ou deux fils. |
| Industrial Description | 10G-12FL45M |
| Inside Diameter | 5/8 po (1,6 cm) |
| Length | 4-7/16 po (11,28 cm) |
| O-Ring | Rainure de bride |
| Seal Type | Joint Torique |
| Termination | Code 61 |
| Type | Bride à joint torique MegaCrimp Code 61 - Tube courbé à 45 degrés |
Interchanges & Equivalent parts:
| G25307-1012 |
| 710327205 |
