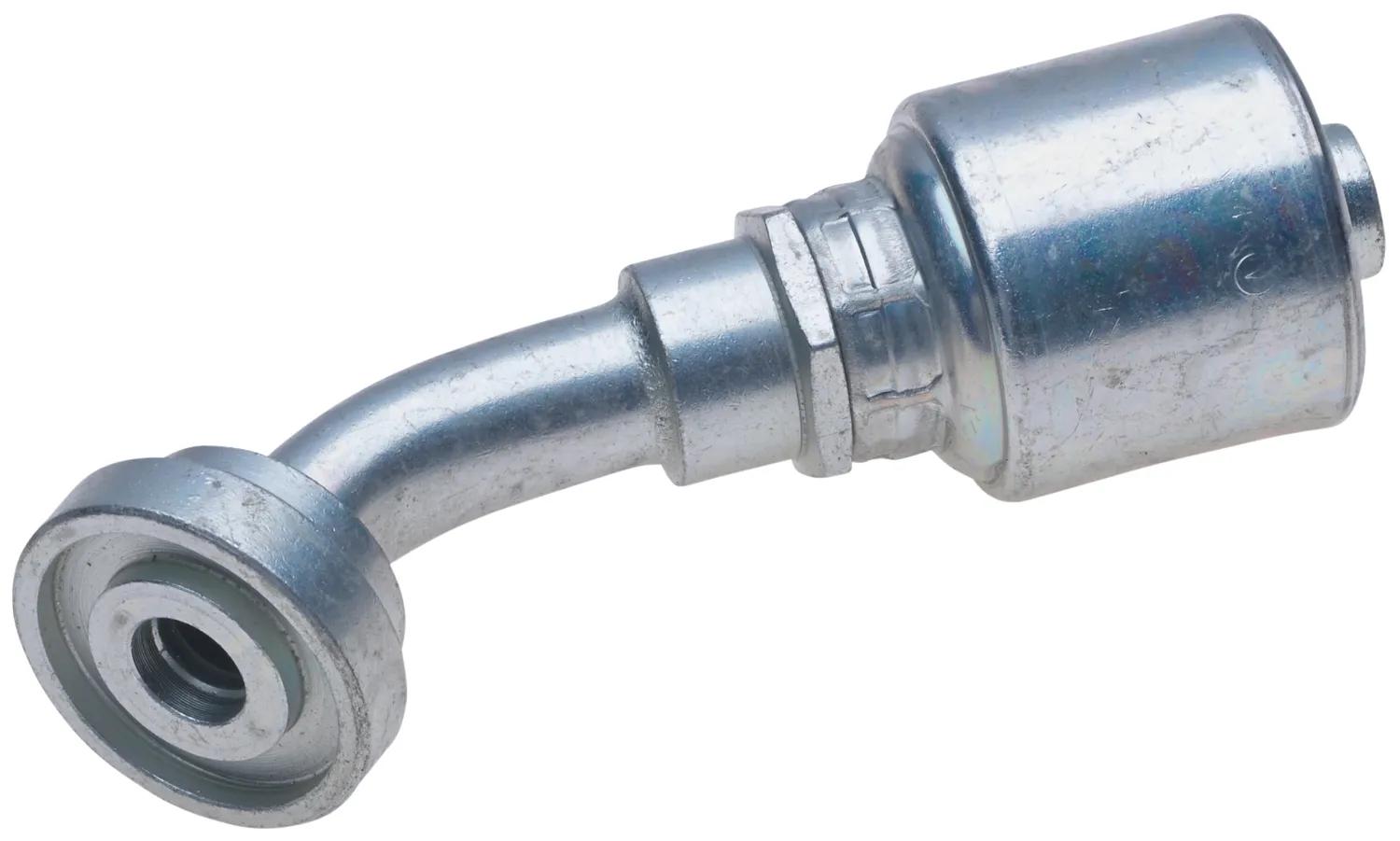

MegaCrimp Code 61 O-Ring Flange, 45*, 8G-8FL45M
#GATG25307-0808
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 45 deg |
| Coupling Description | MegaCrimp Code 61 O-Ring Flange - 45 Bent Tube |
| Cut Off (in) – C | 2-3/8 in (6.05 cm) |
| Diameter | 1-3/16 in (3.02 cm) |
| Drop (in.) | 3/4 in (1.91 cm) |
| Flange Head Thickness (in) – F | 17/64 in (0.69 cm) |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 8G-8FL45M |
| Inside Diameter | 1/2 in (1.27 cm) |
| Length | 3-27/32 in (9.75 cm) |
| OEM Part # | G25307-0808 |
| O-Ring | Flange Groove |
| Product Number | 710327085 |
| Seal Type | O-Ring |
| Termination | Code 61 |
| Type | MegaCrimp Code 61 O-Ring Flange - 45 deg Bent Tube |
Interchanges & Equivalent parts:
| 143400808 |
| GYH14340-0808 |
| 1A8FLA8 |
| G25307-0808 |
| 710327085 |
