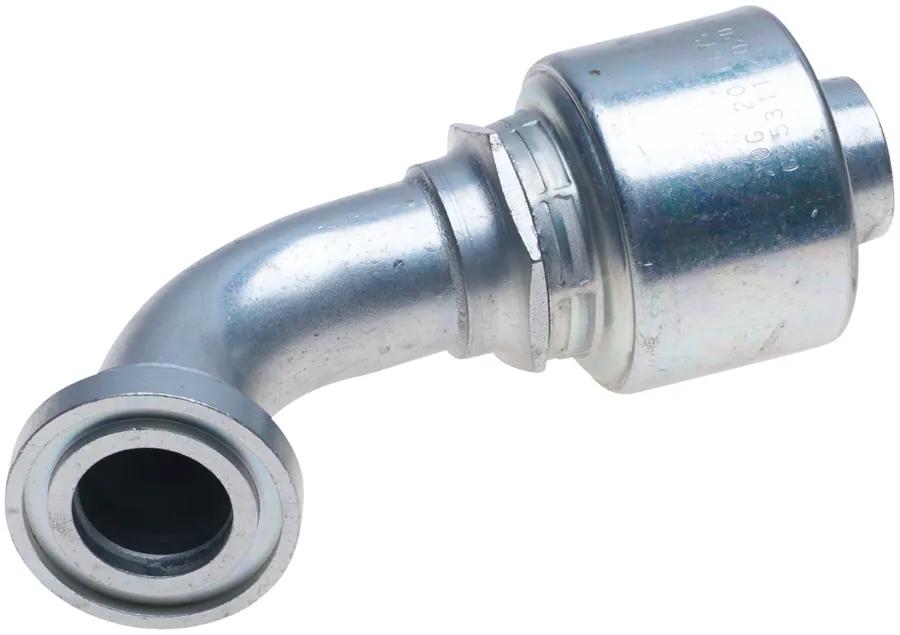

MegaCrimp Code 61 O-Ring Flange, 67.5*, 20G-20FL67S
#GATG25311-2020
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 67.5 deg |
| Coupling Description | MegaCrimp Code 61 O-Ring Flange - 67 1/2 Bent Tube |
| Cut Off (in) – C | 3-19/32 in (9.12 cm) |
| Diameter | 2 in (5.08 cm) |
| Drop (in.) | 2-1/64 in (5.13 cm) |
| Flange Head Thickness (in) – F | 5/16 in (0.79 cm) |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 20G-20FL67S |
| Inside Diameter | 1-1/4 in (3.18 cm) |
| Length | 5-59/64 in (15.04 cm) |
| O-Ring | Flange Groove |
| Seal Type | O-Ring |
| Termination | Code 61 |
| Type | MegaCrimp Code 61 O-Ring Flange - 67.5 deg Bent Tube |
Interchanges & Equivalent parts:
| G25311-2020 |
| 710004335 |
