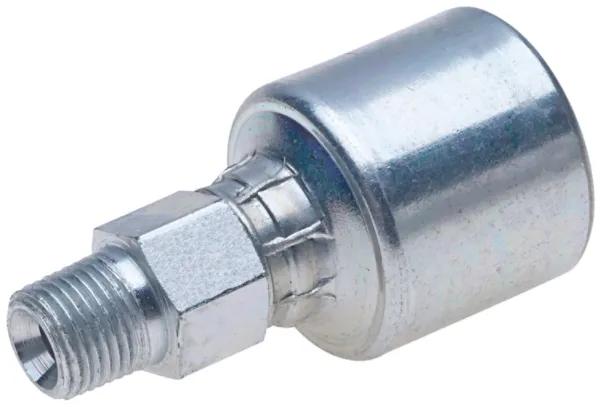

MegaCrimp Coupling, Steel, 0.5 in Connection Size 1, 2.949 in Length
#GATG25100-0812X
Product Overview
It’s what’s Inside the MegaCrimp coupling that makes it perform so well, the “C” insert. This “C” insert allows usage with different hose constructions and wall thicknesses. In addition, the C-insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one- and two-wire braid hoses and select xpiral hoses. An additional bonus: MegaCrimp couplings are fully qualified for SAE, EN, and ISO performance.MegaCrimp Coupling, Steel, 0.5 in Connection Size 1, 2.949 in Length
Features & Benefits
- The ‘bite-the-wire’ design allows for coupling and hose retention to make a high performance, risk-free hydraulic hose assembly
- Full-torque nut couplings are stronger and more durable than traditional staked nut fittings that are prone to cracking when over-torqued
- The full-torque nut transfers input-torque to clamp-load more consistently than staked nuts, minimizing leaks
- MegaCrimp couplings allow you to simplify your inventory by carrying one family of couplings that are qualified on all Gates® wire-braid hoses
- Tested to one million impulse cycles, proving its high performance and maximum service
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker, Gates® has engineered a solution full-torque Nut™ technology now available on Gates® MegaCrimp™ and GlobalSpiral™ couplings
- MegaCrimp couplings set a new standard for hydraulic couplings, the unique in insert ensures inweep-free in concentric crimping to keep equipment and the environment clean
- Surpassed one million impulse cycles during design testing
Specifications
| Length | 2.949 in |
| Material | Steel |
| UPC | 72053660050 |
| Connection Size 1 | 0.5 in |
| Manufacturer Part Number | G25100-0812X |
| Product Category | MegaCrimp Coupling |
| Quantity | 100 |
| Weight | 0.36 lb |
Interchanges & Equivalent parts:
| 71000012 |
