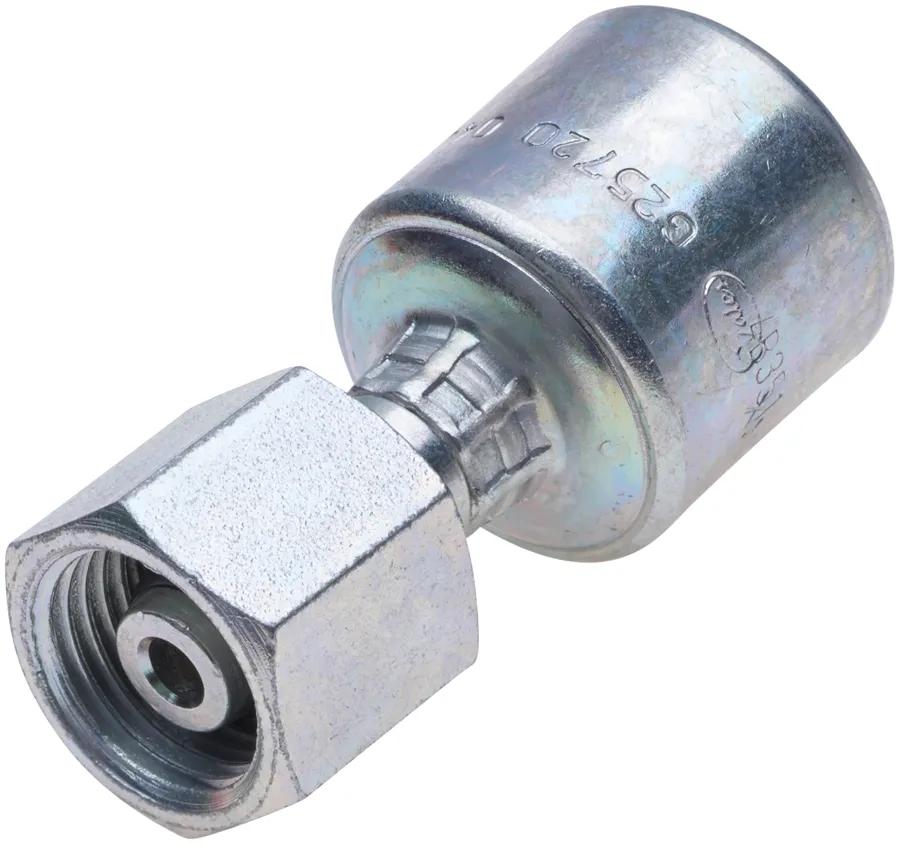

MegaCrimp Female DIN 24 Cone Swivel, 20G-38FDHORX
#GATG25720-2038
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Coupling Description | MegaCrimp Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring |
| Cut Off (in) – C | 2-9/32 in (5.79 cm) |
| Fitting Type | Female |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 20G-38FDHORX |
| Inside Diameter | 1-1/4 in (3.18 cm) |
| Length | 4-3/32 in (10.39 cm) |
| Nut Hex (in) – H2 | 2-23/64 in (5.99 cm) |
| O-Ring | On Female w/ Inverted Nose Seat |
| Seal Type | Mated Angle w/O-Ring |
| Seat Angle (degree) | 24 deg |
| Swivel | Yes |
| Termination | DIN |
| Thread | M52 x 2.0 |
| Type | MegaCrimp Female DIN 24 Cone Swivel - Heavy Series w/ O-Ring |
Interchanges & Equivalent parts:
| G25720-2038 |
| 710092245 |
