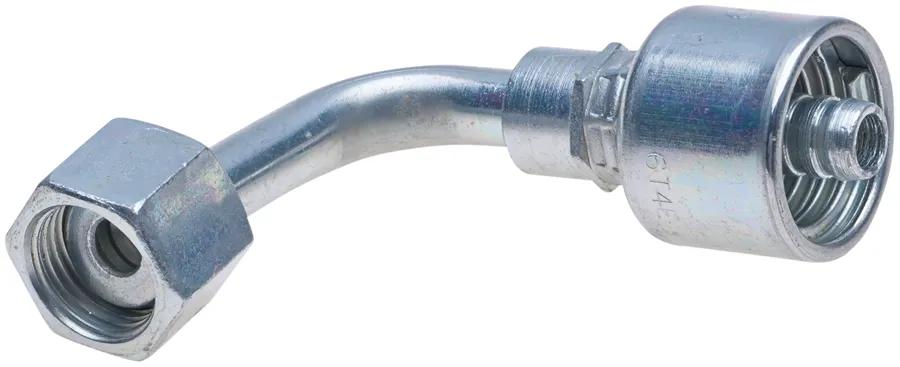

MegaCrimp Female Flat-Face O-Ring Swivel, 90*, 16G-16FFORX90L
#GATG25241-1616
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 90 deg |
| Coupling Description | MegaCrimp Female Flat-Face O-Ring Swivel - 90 Bent Tube |
| Cut Off (in) – C | 2-7/8 in (7.32 cm) |
| Drop (in.) | 4-31/64 in (11.38 cm) |
| Fitting Type | Female |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 16G-16FFORX90L |
| Inside Diameter | 1 in (2.54 cm) |
| Length | 5-7/64 in (12.98 cm) |
| Nut Hex (in) – H2 | 1-39/64 in (4.09 cm) |
| O-Ring | Flat Face O-Ring |
| Seal Type | O-Ring |
| Swivel | Yes |
| Thread | 1-7/16 in-12 |
| Type | MegaCrimp Female Flat-Face O-Ring Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| 147201616 |
| GYH14720-1616 |
| 1AA16FRC16 |
| G25241-1616 |
| 710424765 |
