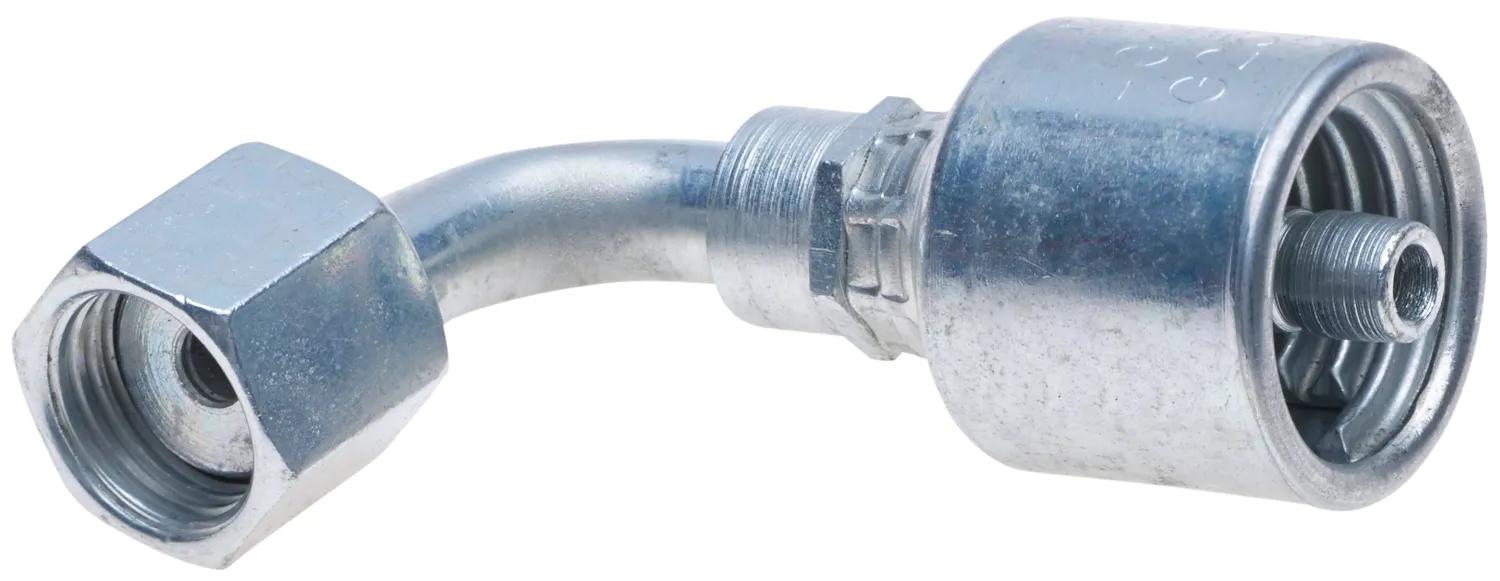

MegaCrimp Female Flat-Face O-Ring Swivel, 90*, 16G-16FFORX90M
#GATG25240-1616
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 90 deg |
| Coupling Description | MegaCrimp Female Flat-Face O-Ring Swivel - 90 Bent Tube |
| Cut Off (in) – C | 2-7/8 in (7.32 cm) |
| Drop (in.) | 2-51/64 in (7.11 cm) |
| Fitting Type | Female |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 16G-16FFORX90M |
| Inside Diameter | 1 in (2.54 cm) |
| Length | 5-7/64 in (12.98 cm) |
| Nut Hex (in) – H2 | 1-39/64 in (4.09 cm) |
| OEM Part # | G25240-1616 |
| O-Ring | Flat Face O-Ring |
| Product Number | 710424755 |
| Seal Type | O-Ring |
| Swivel | Yes |
| Thread | 1-7/16 in-12 |
| Type | MegaCrimp Female Flat-Face O-Ring Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| 147151616 |
| GYH14715-1616 |
| 1AA16FRB16 |
| FJ9893-1616S |
| G25240-1616 |
| 710424755 |
