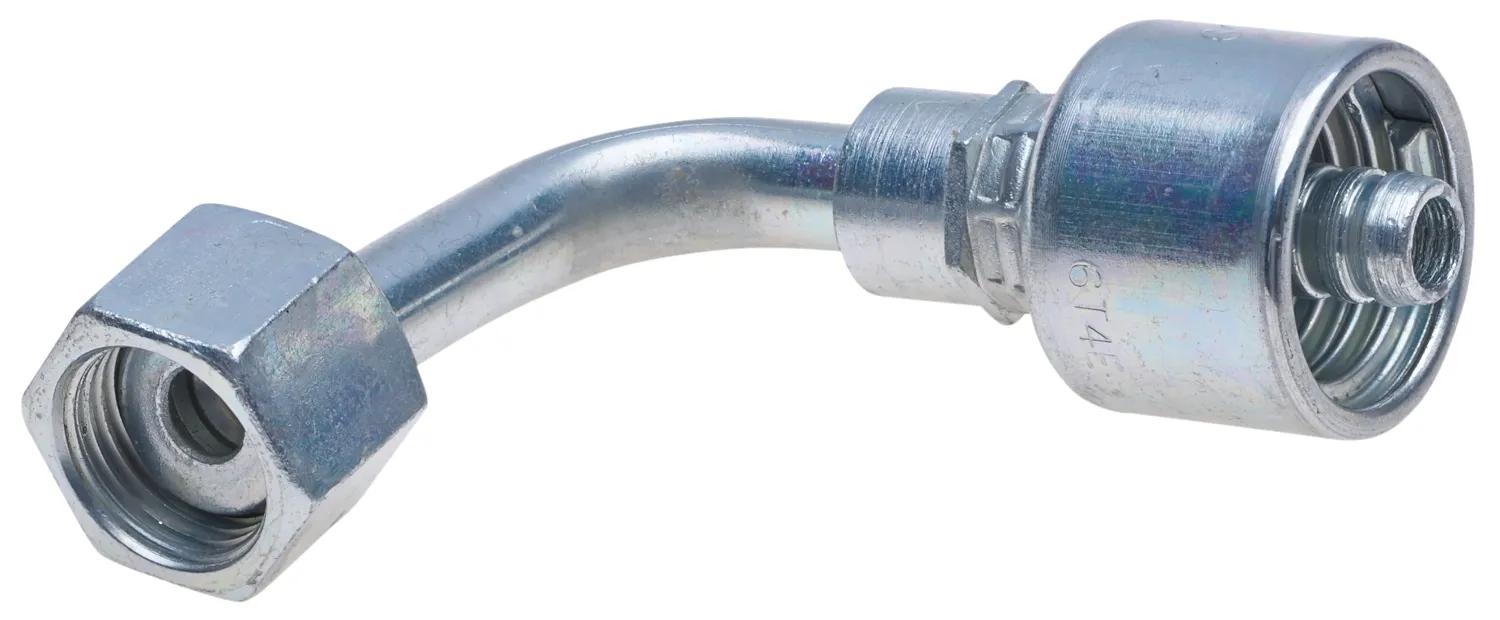

MegaCrimp Female Flat-Face O-Ring Swivel, 90*, 6G-6FFORX90L
#GATG25241-0606
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 90 deg |
| Coupling Description | MegaCrimp Female Flat-Face O-Ring Swivel - 90 Bent Tube |
| Cut Off (in) – C | 1-5/8 in (4.14 cm) |
| Drop (in.) | 2-1/8 in (5.41 cm) |
| Fitting Type | Female |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 6G-6FFORX90L |
| Inside Diameter | 3/8 in (0.97 cm) |
| Length | 2-47/64 in (6.93 cm) |
| Nut Hex (in) – H2 | 55/64 in (2.18 cm) |
| OEM Part # | G25241-0606 |
| O-Ring | Flat Face O-Ring |
| Product Number | 710424265 |
| Seal Type | O-Ring |
| Swivel | Yes |
| Thread | 11/16 in-16 |
| Type | MegaCrimp Female Flat-Face O-Ring Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| 147200606 |
| GYH14720-0606 |
| 1AA6FRC6 |
| G25241-0606 |
| 710424265 |
