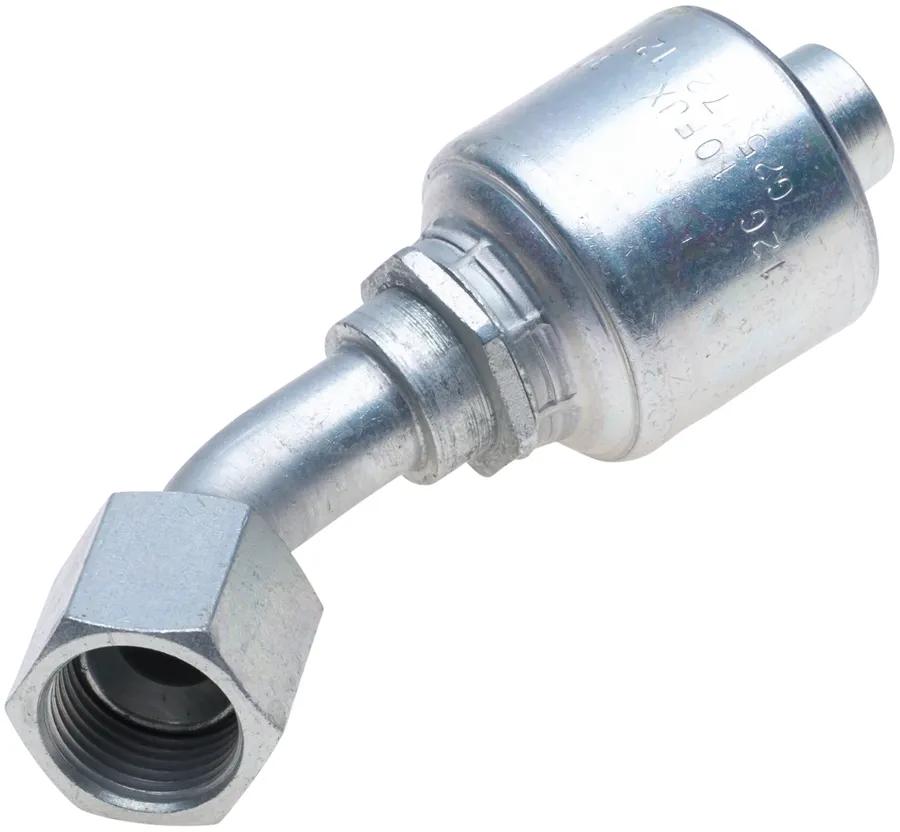

MegaCrimp Female JIC 37 Flare Swivel, 30*, 10G-12FJX30-018
#GATG25172-1012
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 30 deg |
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 30 Bent Tube |
| Cut Off (in) – C | 2-61/64 in (7.49 cm) |
| Drop (in.) | 45/64 in (1.78 cm) |
| Fitting Type | Female |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 10G-12FJX30-018 |
| Inside Diameter | 5/8 in (1.6 cm) |
| Length | 4-7/16 in (11.28 cm) |
| Nut Hex (in) – H2 | 1-17/64 in (3.23 cm) |
| Seal Type | Mated Angle |
| Seat | Standard |
| Seat Angle (degree) | 37 deg |
| Swivel | Yes |
| Thread | 1-1/16 in-12 |
| Type | MegaCrimp Female JIC 37 Flare Swivel - 30 deg Bent Tube |
Interchanges & Equivalent parts:
| G25172-1012 |
| 710357005 |
