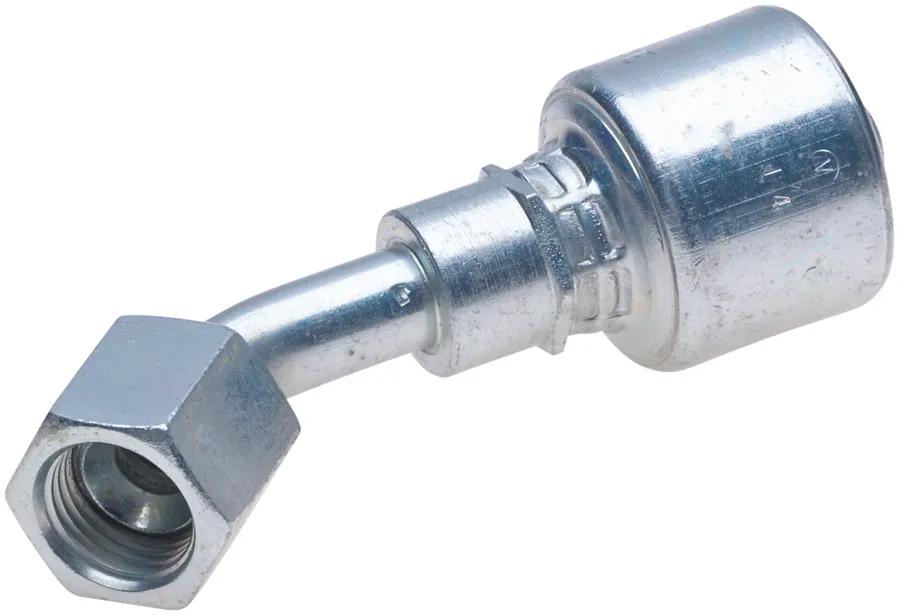

MegaCrimp Female JIC 37 Flare Swivel, 45*, 12G-12FJX45S
#GATG25175-1212
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 45 deg |
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 45 Bent Tube |
| Cut Off (in) – C | 3-5/64 in (7.82 cm) |
| Drop (in.) | 53/64 in (2.11 cm) |
| Fitting Type | Female |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 12G-12FJX45S |
| Inside Diameter | 3/4 in (1.91 cm) |
| Length | 5-3/32 in (12.93 cm) |
| Nut Hex (in) – H2 | 1-17/64 in (3.23 cm) |
| OEM Part # | G25175-1212 |
| Product Number | 710346425 |
| Seal Type | Mated Angle |
| Seat | Standard |
| Seat Angle (degree) | 37 deg |
| Swivel | Yes |
| Thread | 1-1/16 in-12 |
| Type | MegaCrimp Female JIC 37 Flare Swivel - 45 deg Bent Tube |
Interchanges & Equivalent parts:
| B2-JCFX45-1212 |
| 144201212 |
| GYHB2-JCFX45-1212 |
| GYH14420-1212 |
| B2JCFX451212 |
| 12U692 |
| G251751212 |
| SC6401212 |
| G25175-1212 |
| 1AA12FJA12 |
| 1GA12FJA12 |
| FJ9127-1212S |
| 710346425 |
