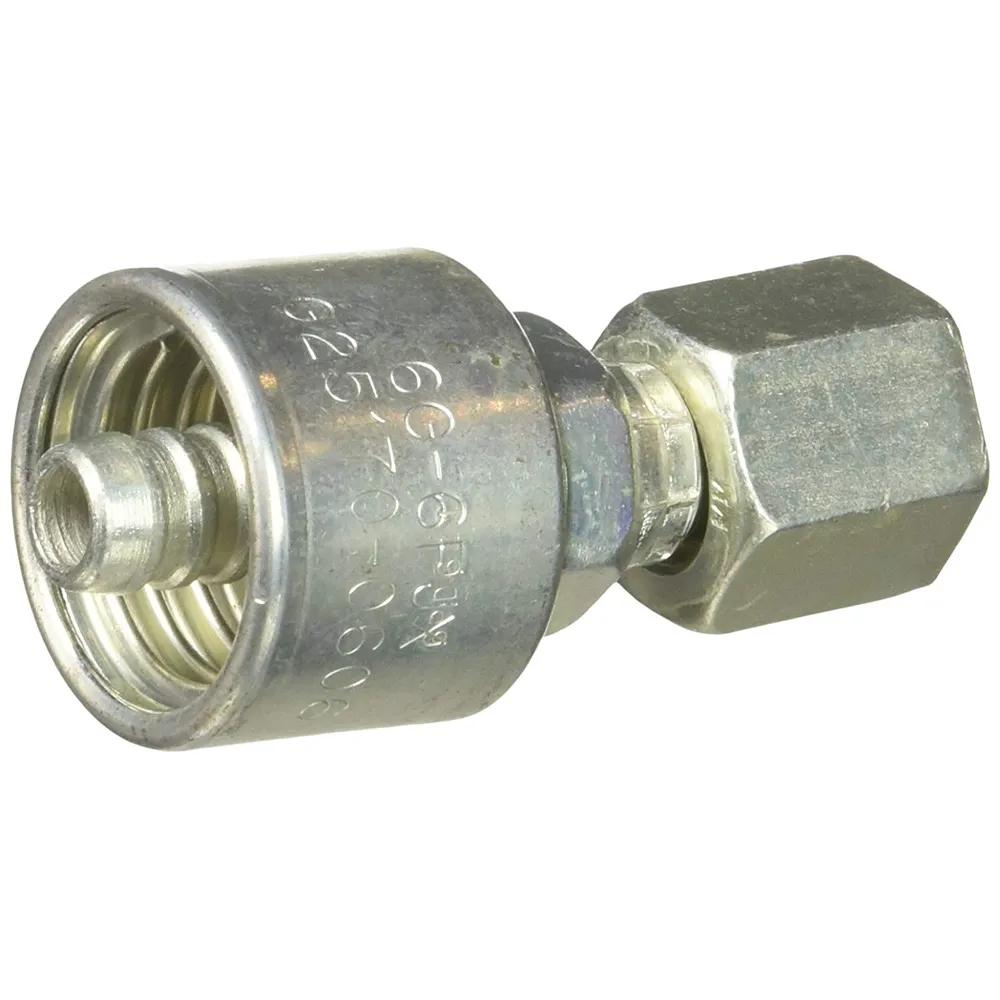

MegaCrimp Female JIC 37 Flare Swivel Coupling, Steel, 9/16-18 x 3/8 in, 6G-6FJX

#GATG25170-0606

Sommaire du produit

Gates MegaCrimp Couplings are designed for use with Gates wire braid hydraulic hose to create a robust, leak-free assembly. The pre-assembled coupling features a patented "C" insert attached to the ferrule, allowing usage with different hose constructions and wall thicknesses. This insert ensures an even distribution of crimping forces to form a concentric, weep-free seal, simplifying inventory requirements. MegaCrimp couplings are fully qualified EN-performance couplings, tested to surpass one million impulse cycles, providing reliable, environmentally friendly hydraulic connections.MegaCrimp Coupling, Steel, 9/16-18 Connection Size 1, 3/8 in Connection Size 2, Female JIC 37 deg Flare Swivel Connection Type 1, Hose Connection Type 2, 2.42 in Length

Caractéristiques et avantages

Surpassed one million impulse cycles during design testing.

MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.

One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.

Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.

Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.

One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.

Spécifications

Coupure (po) – C	1-19/64 po
Type de raccords	Femelle
Description industrielle	6G-6FJX
Diamètre intérieur	3/8 po
Longueur	2-27/64 po
Matériel	Acier
Écrou hexagonal (po) – H2	3/4 po
N° de pièce d'origine	G25170-0606
Numéro de produit	710308145
Seal Type	Angle apparié
Seat	Standard
Seat Angle (degree)	37°
Sleeve Inside Diameter	45/64 po
Stem Hex (in.)	45/64 po
Swivel	Oui
Thread	9/16 po-18
Thread Type	Femelle JIC 37 deg Flare Swivel
Type	Femelle JIC 37 Flare Swivel MegaCrimp
Connection Size 1	9/16-18
Connection Size 2	3/8 in
Connection Type 1	Female JIC 37 deg Flare Swivel
Connection Type 2	Hose
Product Category	Raccord MegaCrimp
Weight	0.19 lb (0,09 kg)
