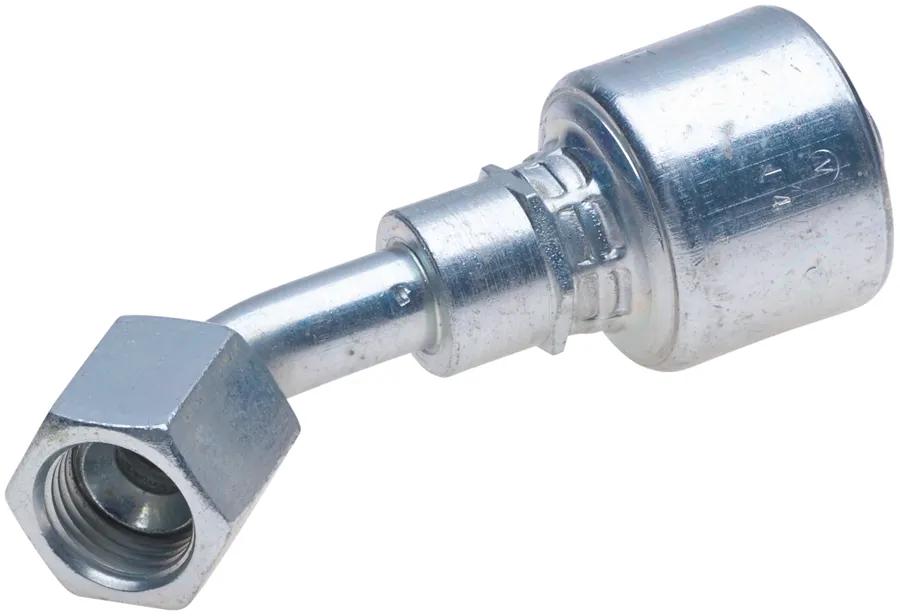

MegaCrimp Female JIC 37 Flare Swivel x 45° Bent Tube Coupling, Steel, 1-5/16-12 x 1 in, 16G-16FJX45S
#GATG25175-1616
Product Overview
Gates MegaCrimp Couplings are designed for use with Gates wire braid hydraulic hose to create a robust, leak-free assembly. The pre-assembled coupling features a patented "C" insert attached to the ferrule, allowing usage with different hose constructions and wall thicknesses. This insert ensures an even distribution of crimping forces to form a concentric, weep-free seal, simplifying inventory requirements. MegaCrimp couplings are fully qualified EN-performance couplings, providing a reliable and environmentally friendly solution.MegaCrimp Coupling, Steel, 1-5/16-12 Connection Size 1, 1 in Connection Size 2, Female JIC 37 deg Flare Swivel Connection Type 1, 45 deg Bent Tube Connection Type 2, 5.68 in Length
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
- MegaCrimp couplings are fully qualified EN-performance couplings.
Specifications
| Angle | 45 deg |
| Coupling Description | MegaCrimp Female JIC 37 Flare Swivel - 45 Bent Tube |
| Cut Off (in) – C | 3-7/16 in |
| Drop (in.) | 15/16 in |
| Fitting Type | Female |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 16G-16FJX45S |
| Inside Diameter | 1 in |
| Length | 5-11/16 in |
| Material | Steel |
| Nut Hex (in) – H2 | 1-39/64 in |
| OEM Part # | G25175-1616 |
| Product Number | 710346505 |
| Seal Type | Mated Angle |
| Seat | Standard |
| Seat Angle (degree) | 37 deg |
| Swivel | Yes |
| Thread | 1-5/16 in-12 |
| Type | MegaCrimp Female JIC 37 Flare Swivel - 45 deg Bent Tube |
| UPC | 072053406283 |
| Connection Size 1 | 1-5/16-12 |
| Connection Size 2 | 1 in |
| Connection Type 1 | Female JIC 37 deg Flare Swivel |
| Connection Type 2 | 45 deg Bent Tube |
| Product Category | MegaCrimp Coupling |
| Weight | 1.46 lb (0.66 kg) |
Interchanges & Equivalent parts:
| 144201616 |
| GYH14420-1616 |
| 16U696 |
| G251751616 |
| SC6401616 |
| 1AA16FJA16 |
| 1GA16FJA16 |
| FJ9127-1616S |
| G25175-1616 |
| 710346505 |
