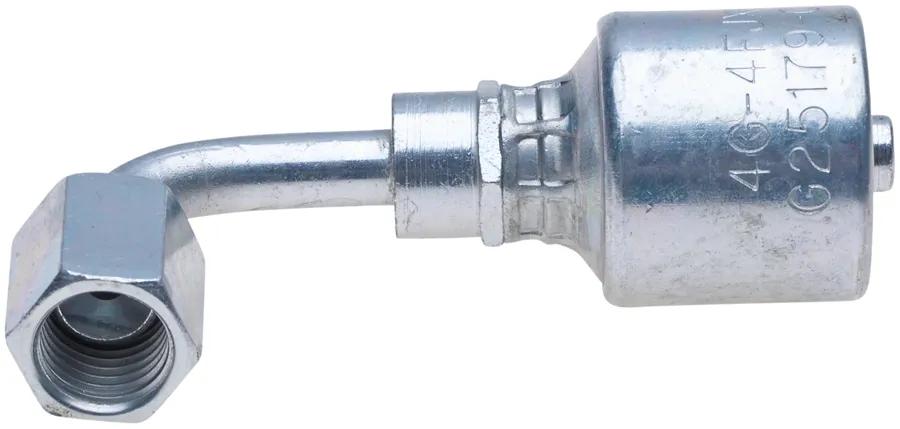

MegaCrimp Female JIC 37 Flare Swivel x 90° Bent Tube Coupling, Steel, 7/16-20 x 1/4 in, 4G-4FJX90S
Product Overview
Gates MegaCrimp Couplings are designed for use with Gates wire braid hydraulic hose to create a robust, leak-free assembly. The pre-assembled coupling features a patented "C" insert that allows usage with different hose constructions and wall thicknesses, ensuring an even distribution of crimping forces for a concentric, weep-free seal. This innovation simplifies inventory management by accommodating various hose outside diameters on both one-wire and two-wire braid hydraulic hoses. MegaCrimp couplings are fully qualified EN-performance couplings, tested to surpass one million impulse cycles, providing reliable, environmentally friendly performance.MegaCrimp Coupling, Steel, 7/16-20 Connection Size 1, 1/4 in Connection Size 2, Female JIC 37 deg Flare Swivel Connection Type 1, 90 deg Bent Tube Connection Type 2, 2.48 in Length
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 90 deg |
| Finish | Environmentally-Friendly TuffCoat Plating |
| Fitting Type | Female |
| Height | 53/64 in |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 4G-4FJX90S |
| Length | 2-31/64 in |
| Material | Steel |
| Nut Hex (in) – H2 | 35/64 in |
| OEM Part # | G25179-0404 |
| Product Number | 710347045 |
| Seal Type | Mated Angle |
| Seat | Standard |
| Seat Angle (degree) | 37 deg |
| Swivel | Yes |
| Thread | 7/16 in-20 |
| Type | MegaCrimp Female JIC 37 Flare Swivel - 90 deg Bent Tube |
| UPC | 072053323207 |
| Connection Size 1 | 7/16-20 |
| Connection Size 2 | 1/4 in |
| Connection Type 1 | Female JIC 37 deg Flare Swivel |
| Connection Type 2 | 90 deg Bent Tube |
| Operating Pressure | Tested to Industry-Leading 600,000 Impulse Cycles |
| Standards | EN-performance |
| Product Category | MegaCrimp Coupling |
| Weight | 0.18 lb (0.08 kg) |
