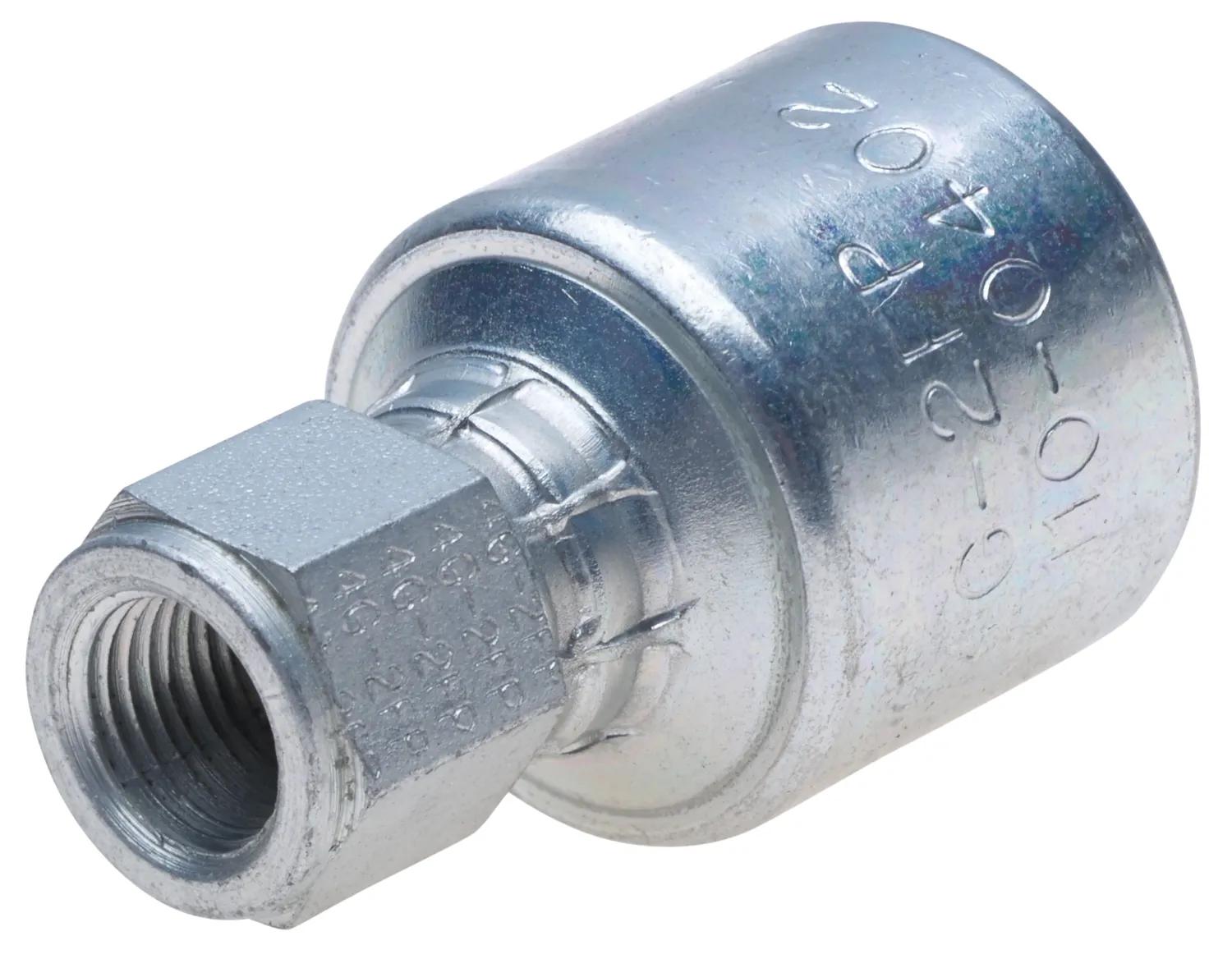

MegaCrimp Female Pipe (NPTF), 6G-6FP
#GATG25110-0606
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Description d'accouplement | MegaCrimp Female Pipe (NPTF - w/o 30 Cone Seat) |
| Coupure (po) – C | 31/32 in (2.46 cm) |
| Type de raccords | Female |
| Recommandations pour le tuyau | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Description industrielle | 6G-6FP |
| Diamètre intérieur | 3/8 po (0,97 cm) |
| Longueur | 2-1/16 po (5,23 cm) |
| N° de pièce d'origine | G25110-0606 |
| Numéro de produit | 710010525 |
| Type de joint d'étanchéité | Thread Interference |
| Tige hexagonale (po) | 13/16 in (2.06 cm) |
| Pivot | No |
| Type | Raccord de tuyau femelle MegaCrimp (NPTF - sans siège conique à 30 degrés) |
Interchanges & Equivalent parts:
| 14600-0606 |
| 146000606 |
| GYH14600-0606 |
| G25110-0606 |
| 710010525 |
