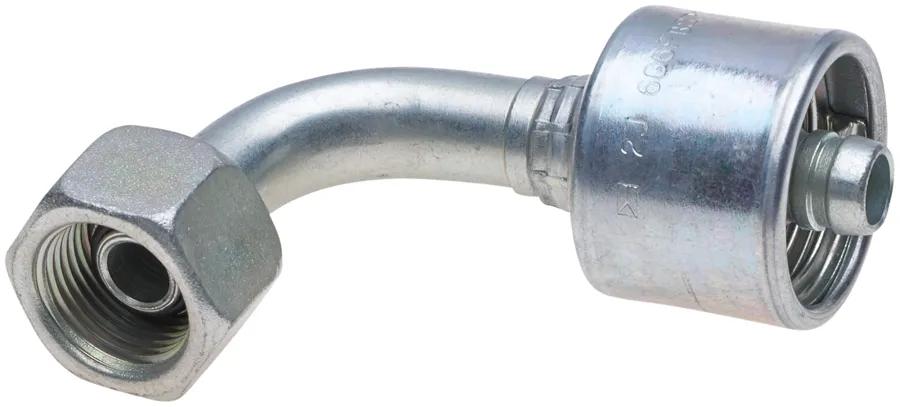

MegaCrimp Female Pipe O-Ring Swivel, 90*, 8G-10FBSPORX90
#GATG25832-0810
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Includes O-Ring Sealing in Flare.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 90 deg |
| Coupling Description | MegaCrimp Female British Standard Parallel Pipe O-Ring Swivel - 90 Bent Tube |
| Cut Off (in) – C | 1-47/64 in (4.39 cm) |
| Drop (in.) | 1-13/16 in (4.6 cm) |
| Fitting Type | Female |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 8G-10FBSPORX90 |
| Inside Diameter | 1/2 in (1.27 cm) |
| Length | 3-13/64 in (8.13 cm) |
| Nut Hex (in) – H2 | 1-3/16 in (3.02 cm) |
| O-Ring | On Female w/ Inverted Nose Seat |
| Seal Type | Mated Angle w/O-Ring |
| Seat Angle (degree) | 30 deg |
| Swivel | Yes |
| Termination | British |
| Type | MegaCrimp Female British Standard Parallel Pipe O-Ring Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| G25832-0810 |
| 710096595 |
