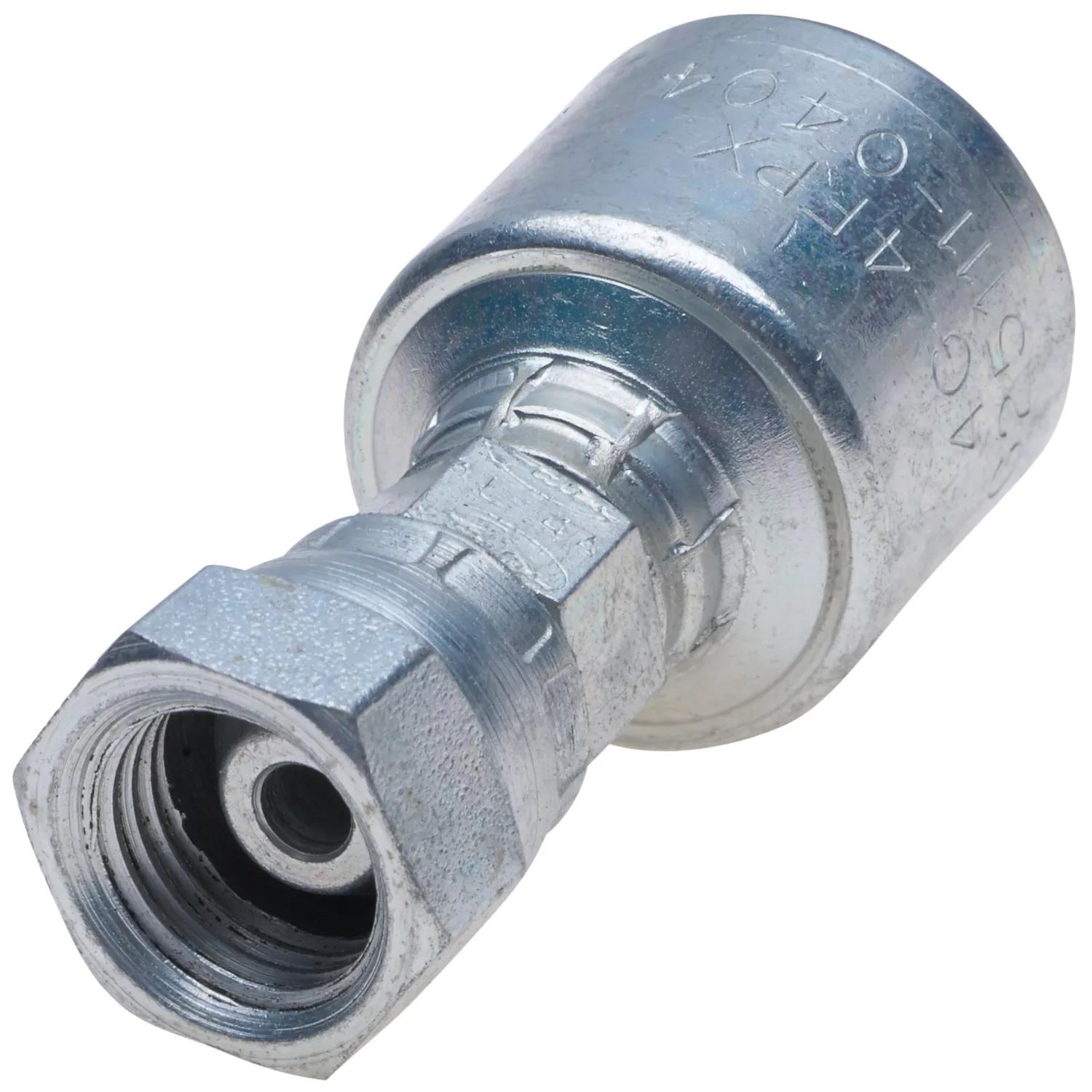

MegaCrimp Female Pipe Swivel (NPSM, 30* Cone Seat), 20G-20FPX
#GATG25111-2020
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Coupling Description | MegaCrimp Female Pipe Swivel (NPSM - 30 Cone Seat) |
| Cut Off (in) – C | 2-3/16 in (5.56 cm) |
| Fitting Type | Female |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 20G-20FPX |
| Inside Diameter | 1-1/4 in (3.18 cm) |
| Length | 4-43/64 in (11.86 cm) |
| Nut Hex (in) – H2 | 1-7/8 in (4.78 cm) |
| Nut Hex Size | 1-7/8 in (4.78 cm) |
| OEM Part # | G25111-2020 |
| Product Number | 710000625 |
| Seal Type | Mated Angle |
| Seat | Inverted |
| Seat Angle (degree) | 30 deg |
| Stem Hex (in.) | 1-3/4 in (4.45 cm) |
| Swivel | Yes |
| Type | MegaCrimp Female Pipe Swivel (NPSM - 30 deg Cone Seat) |
Interchanges & Equivalent parts:
| G25111-2020 |
| 710000625 |
