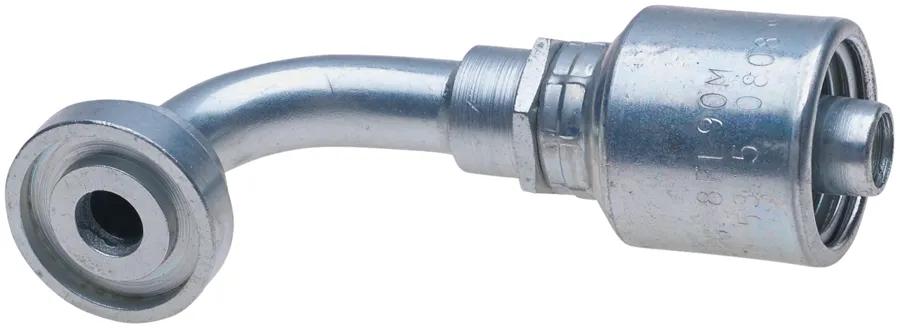

MegaCrimp Komatsu O-Ring Flange, 90* Bent Tube, 10G-10FLK90
#GATG25315-1010
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 90 deg |
| Coupling Description | Komatsu O-Ring Flange - 90 Bent Tube |
| Cut Off (in) – C | 2-27/64 in (6.15 cm) |
| Diameter | 1-11/32 in (3.4 cm) |
| Drop (in.) | 2-11/64 in (5.51 cm) |
| Flange Head Thickness (in) – F | 17/64 in (0.69 cm) |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 10G-10FLK90 |
| Inside Diameter | 5/8 in (1.6 cm) |
| Length | 3-29/32 in (9.93 cm) |
| O-Ring | Flange Groove |
| Seal Type | O-Ring |
| Termination | Komatsu |
| Type | MegaCrimp Komatsu O-Ring Flange - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| 1A10KSB10 |
| G25315-1010 |
| 710004475 |
