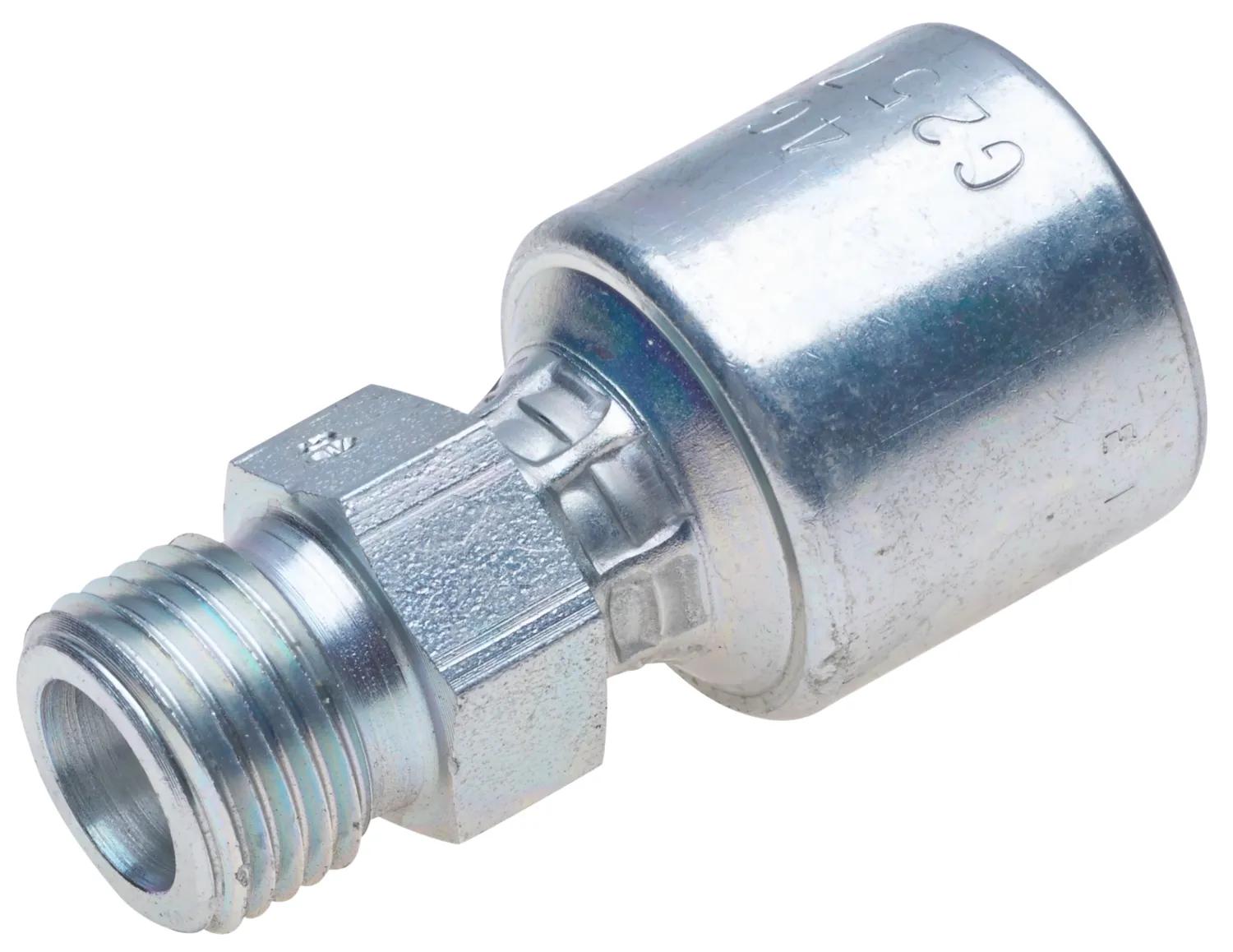

MegaCrimp Male DIN 24 Cone, Heavy Series, 10G-20MDH
#GATG25715-1020
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
- See Accessories for Metric Bite Sleeves & Nuts.
Specifications
| Angle | 0 deg |
| Coupling Description | MegaCrimp Male DIN 24 Cone - Heavy Series |
| Cut Off (in) – C | 1-13/32 in (3.58 cm) |
| Fitting Type | Male |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 10G-20MDH |
| Inside Diameter | 5/8 in (1.6 cm) |
| Length | 2-57/64 in (7.34 cm) |
| Note | See Accessories for Metric Bite Sleeves and Nuts. |
| OEM Part # | G25715-1020 |
| O-Ring | On Female w/ Inverted Nose Seat |
| Product Number | 710099675 |
| Seal Type | Mated Angle w/O-Ring |
| Seat Angle (degree) | 24 deg |
| Sleeve Inside Diameter | 1-17/64 in (3.23 cm) |
| Stem Hex (in.) | 1-17/64 in (3.23 cm) |
| Swivel | No |
| Termination | DIN |
| Type | MegaCrimp Male DIN 24 Cone - Heavy Series |
Interchanges & Equivalent parts:
| 1A16EK10 |
| G25715-1020 |
| 710099675 |
