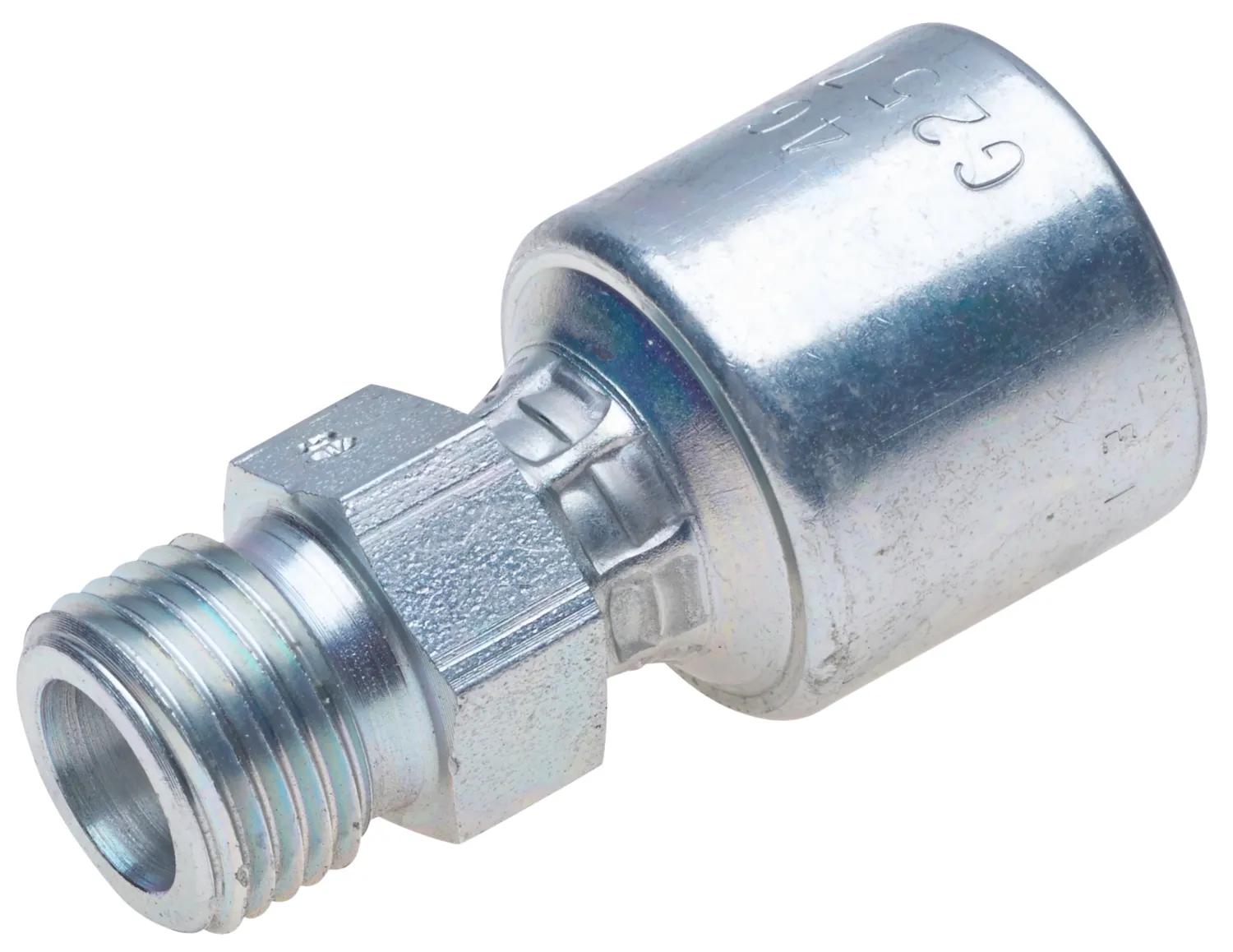

MegaCrimp Male DIN 24 Cone, Heavy Series, 6G-14MDH
#GATG25715-0614
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- Surpassed one million impulse cycles during design testing.
- MegaCrimp couplings set a new standard for hydraulic couplings. The unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over-torquing by a strong-armed worker. Gates has engineered a solution – Full-Torque Nut technology now available on Gates MegaCrimp and GlobalSpiral couplings.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
- See Accessories for Metric Bite Sleeves & Nuts.
Specifications
| Angle | 0 deg |
| Description d'accouplement | MegaCrimp Male DIN 24 Cone - Heavy Series |
| Coupure (po) – C | 1-15/64 in (3.12 cm) |
| Type de raccords | Male |
| Recommandations pour le tuyau | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Description industrielle | 6G-14MDH |
| Diamètre intérieur | 3/8 po (0,97 cm) |
| Longueur | 2-11/32 po (5,94 cm) |
| Note | See Accessories for Metric Bite Sleeves and Nuts. |
| OEM Part # | G25715-0614 |
| O-Ring | Sur femelle avec siège à nez inversé |
| Product Number | 710015365 |
| Seal Type | Mated Angle w/O-Ring |
| Seat Angle (degree) | 24 deg |
| Sleeve Inside Diameter | 15/16 in (2.39 cm) |
| Stem Hex (in.) | 15/16 in (2.39 cm) |
| Swivel | No |
| Termination | DIN |
| Thread | M22 x 1.5 |
| Type | Cône mâle MegaCrimp DIN 24 - Série lourde |
Interchanges & Equivalent parts:
| 1A10EK6 |
| G25715-0614 |
| 710015365 |
