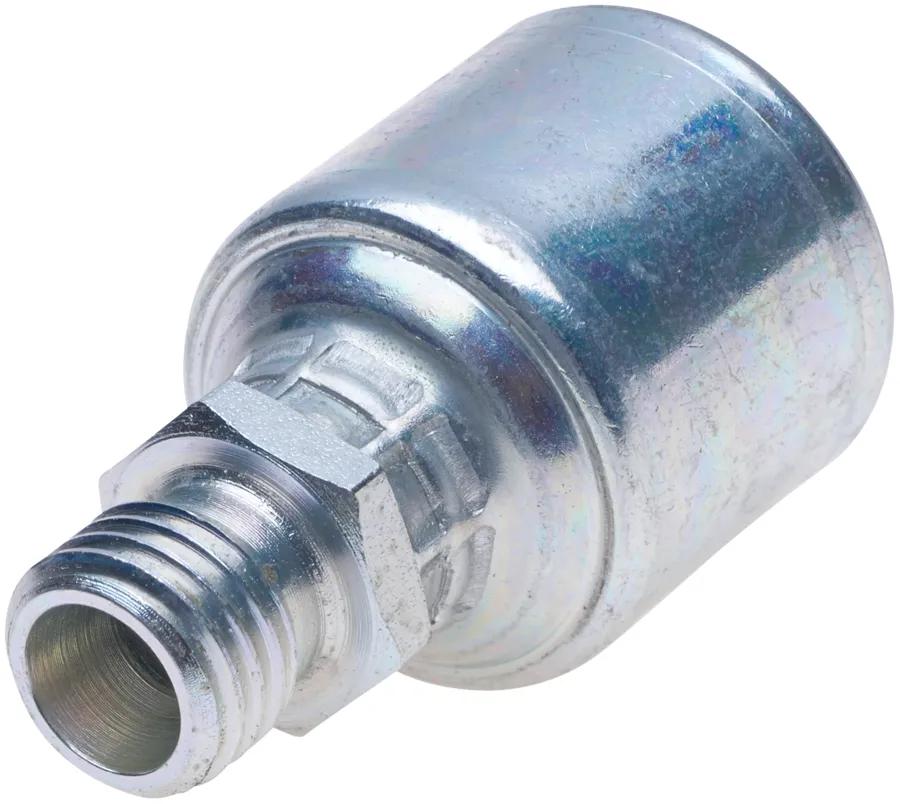

MegaCrimp Male DIN 24 Cone, Light Series, 20G-35MDL
#GATG25615-2035
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Coupling Description | MegaCrimp Male DIN 24 Cone - Light Series |
| Cut Off (in) – C | 1-19/32 in (4.04 cm) |
| Fitting Type | Male |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 20G-35MDL |
| Inside Diameter | 1-1/4 in (3.18 cm) |
| Length | 3-59/64 in (9.96 cm) |
| O-Ring | On Female w/ Inverted Nose Seat |
| Seal Type | Mated Angle w/O-Ring |
| Seat Angle (degree) | 24 deg |
| Sleeve Inside Diameter | 1-13/16 in (4.6 cm) |
| Stem Hex (in.) | 1-13/16 in (4.6 cm) |
| Swivel | No |
| Termination | DIN |
| Thread | M45 x 2.0 |
| Type | MegaCrimp Male DIN 24 Cone - Light Series |
Interchanges & Equivalent parts:
| 1AT32DK20 |
| G25615-2035 |
| 710004925 |
