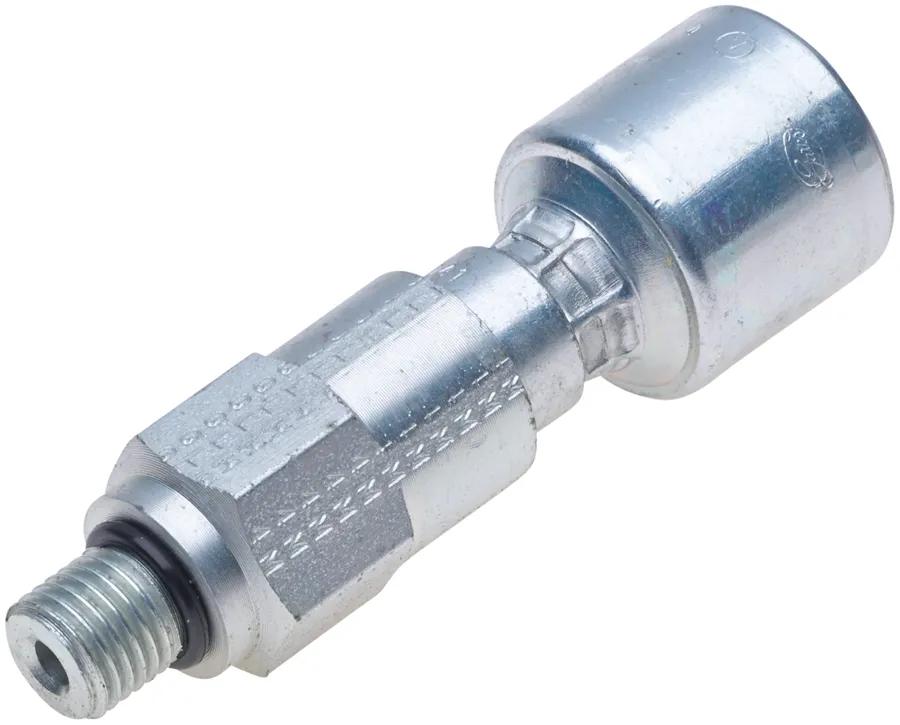

MegaCrimp Male O-Ring Boss Swivel, 10G-10MBX
#GATG25121-1010
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Not to be Used as a Live Swivel. Internal O-Rings Rated at +250 Deg. F (+121 Deg. C). SAE J1926/3 ISO 11926-3 Light-Duty (L Series) Stud End.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 0 deg |
| Coupling Description | MegaCrimp Male O-Ring Boss Swivel |
| Cut Off (in) – C | 2-13/32 in (6.12 cm) |
| Fitting Type | Male |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 10G-10MBX |
| Inside Diameter | 5/8 in (1.6 cm) |
| Length | 3-7/8 in (9.86 cm) |
| Nut Hex (in) – H2 | 1-17/64 in (3.23 cm) |
| O-Ring | Outside O-Ring Boss |
| Seal Type | O-Ring |
| Swivel | Yes |
| Type | MegaCrimp Male O-Ring Boss Swivel |
Interchanges & Equivalent parts:
| G25121-1010 |
| 720940115 |
