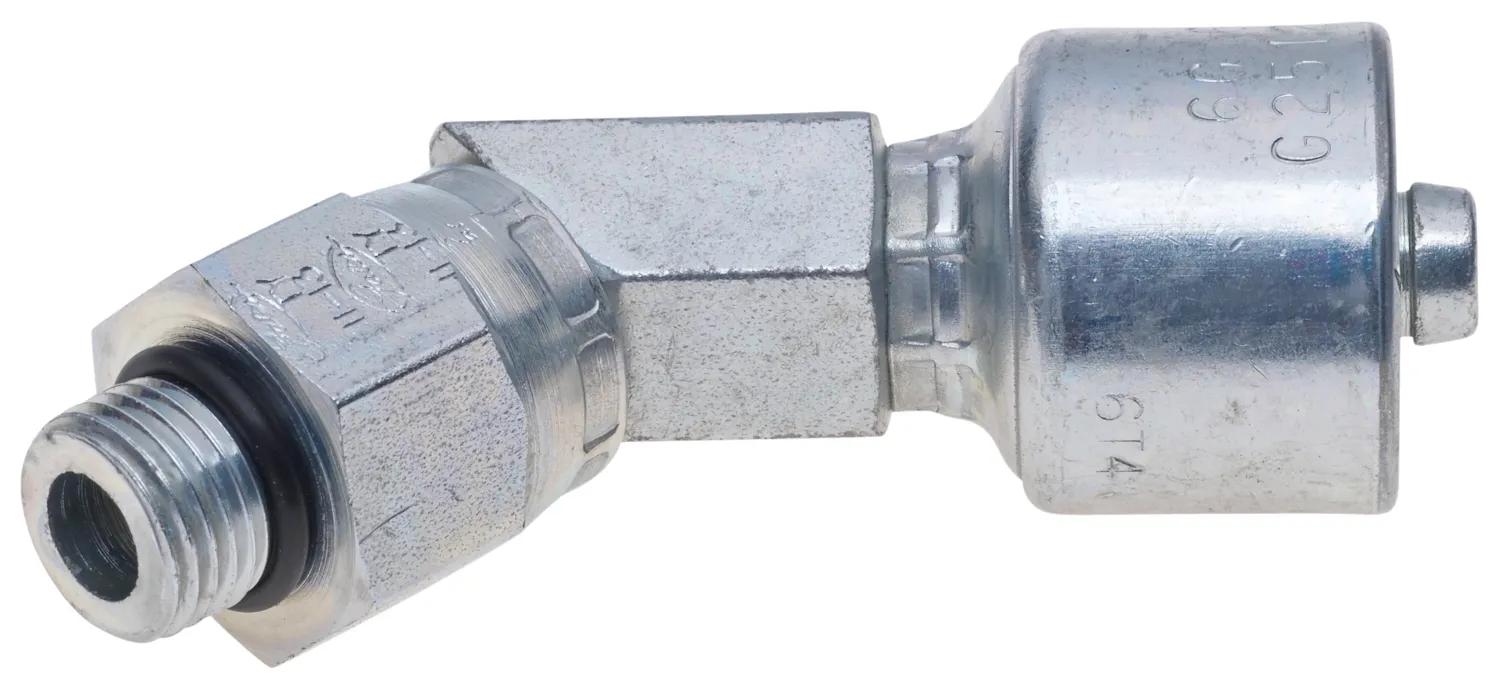

MegaCrimp Male O-Ring Boss Swivel, 45* Block, 8G-10MBX45BL
#GATG25122-0810
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Not to be Used as a Live Swivel. Internal O-Rings Rated at +250 Deg. F (+121 Deg. C). SAE J1926/3 ISO 11926-3 Light-Duty (L Series) Stud End.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 45 deg |
| Coupling Description | MegaCrimp Male O-Ring Boss Swivel - 45 Block |
| Cut Off (in) – C | 1-39/64 in (4.09 cm) |
| Drop (in.) | 1-5/32 in (2.95 cm) |
| Fitting Type | Male |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 8G-10MBX45BL |
| Inside Diameter | 1/2 in (1.27 cm) |
| Length | 3-5/64 in (7.82 cm) |
| Note | Internal O-Rings rated at +250°F (+121°C). NOT TO BE USED AS A LIVE SWIVEL. SAE J1926/3 ISO 11926-3 Light-Duty (L Series) Stud End. |
| Nut Hex (in) – H2 | 1/32 in (0.08 cm) |
| Nut Hex Size | 1 in (2.54 cm) |
| OEM Part # | G25122-0810 |
| O-Ring | Outside O-Ring Boss |
| Product Number | 710002505 |
| Seal Type | O-Ring |
| Swivel | Yes |
| Type | MegaCrimp Male O-Ring Boss Swivel - 45 deg Block |
Interchanges & Equivalent parts:
| G25122-0810 |
| 710002505 |
