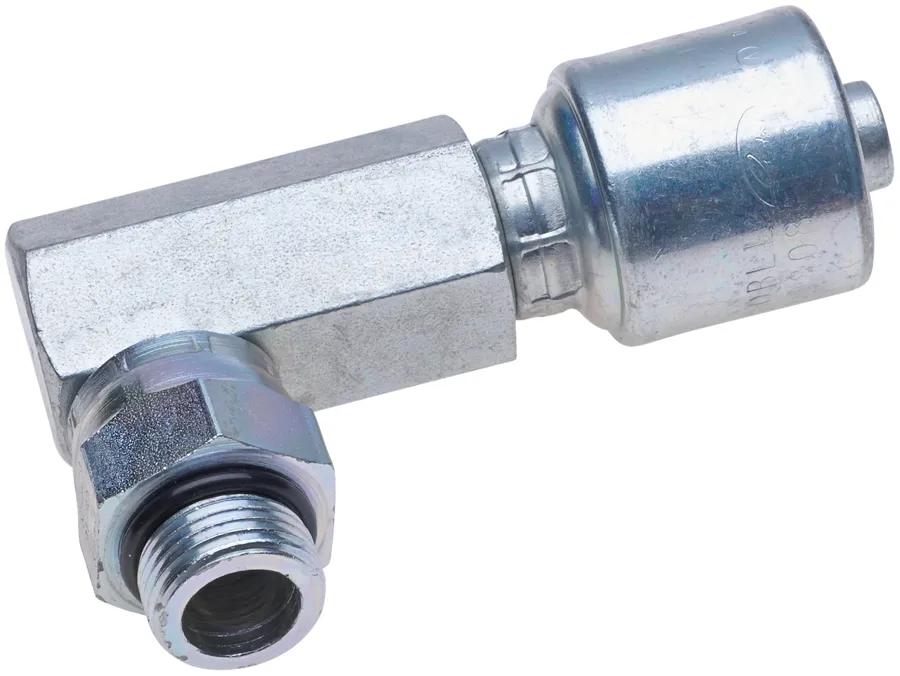

MegaCrimp Male O-Ring Boss Swivel, 90* Block, 12G-12MBX90BLL
#GATG25124-1212
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Not to be Used as a Live Swivel. Internal O-Rings Rated at +250 Deg. F (+121 Deg. C). SAE J1926/3 ISO 11926-3 Light-Duty (L Series) Stud End.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 90 deg |
| Coupling Description | MegaCrimp Male O-Ring Boss Swivel - 90 Block |
| Cut Off (in) – C | 1-15/16 in (4.93 cm) |
| Drop (in.) | 2-9/32 in (5.79 cm) |
| Fitting Type | Male |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 12G-12MBX90BLL |
| Inside Diameter | 3/4 in (1.91 cm) |
| Length | 3-15/16 in (10.01 cm) |
| Nut Hex (in) – H2 | 3/64 in (0.13 cm) |
| Nut Hex Size | 1-5/16 in (3.33 cm) |
| O-Ring | Outside O-Ring Boss |
| Seal Type | O-Ring |
| Swivel | Yes |
| Thread | 1-1/16 in-12 |
| Type | MegaCrimp Male O-Ring Boss Swivel - 90 deg Block |
Interchanges & Equivalent parts:
| G25124-1212 |
| 710002755 |
