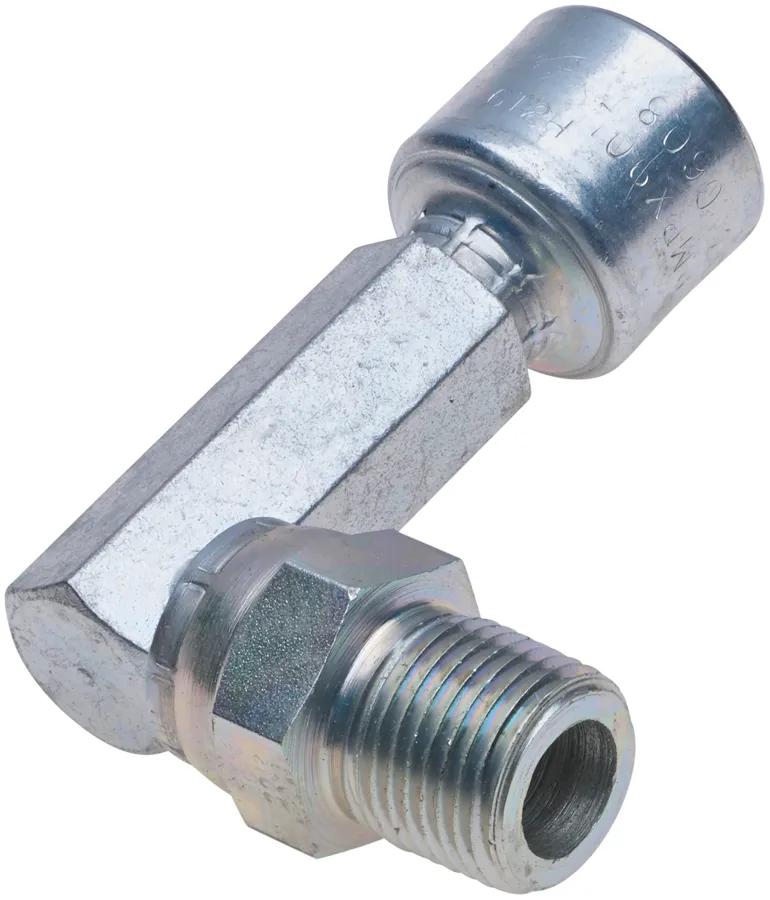

MegaCrimp Male Pipe Swivel, 90* Long Block, 12G-12MPX90L
#GATG25107-1212
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Not to be Used as a Live Swivel. These Couplings Have a Longer Reach (Length Dimension) to Accommodate the OmniCrimp 21 Crimper.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 90 deg |
| Coupling Description | MegaCrimp Male Pipe Swivel - 90 Long Block (NPTF - w/o 30 Cone Seat) |
| Cut Off (in) – C | 1-59/64 in (4.88 cm) |
| Drop (in.) | 2-19/64 in (5.84 cm) |
| Fitting Type | Male |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 12G-12MPX90L |
| Inside Diameter | 3/4 in (1.91 cm) |
| Length | 3-15/16 in (10.01 cm) |
| Nut Hex (in) – H2 | 3/64 in (0.13 cm) |
| Nut Hex Size | 1-5/16 in (3.33 cm) |
| Seal Type | Thread Interference |
| Stem Hex (in.) | 1-3/8 in (3.51 cm) |
| Swivel | Yes |
| Type | MegaCrimp Male Pipe Swivel - 90 deg Long Block (NPTF - w/o 30 deg Cone Seat) |
Interchanges & Equivalent parts:
| G25107-1212 |
| 710000475 |
