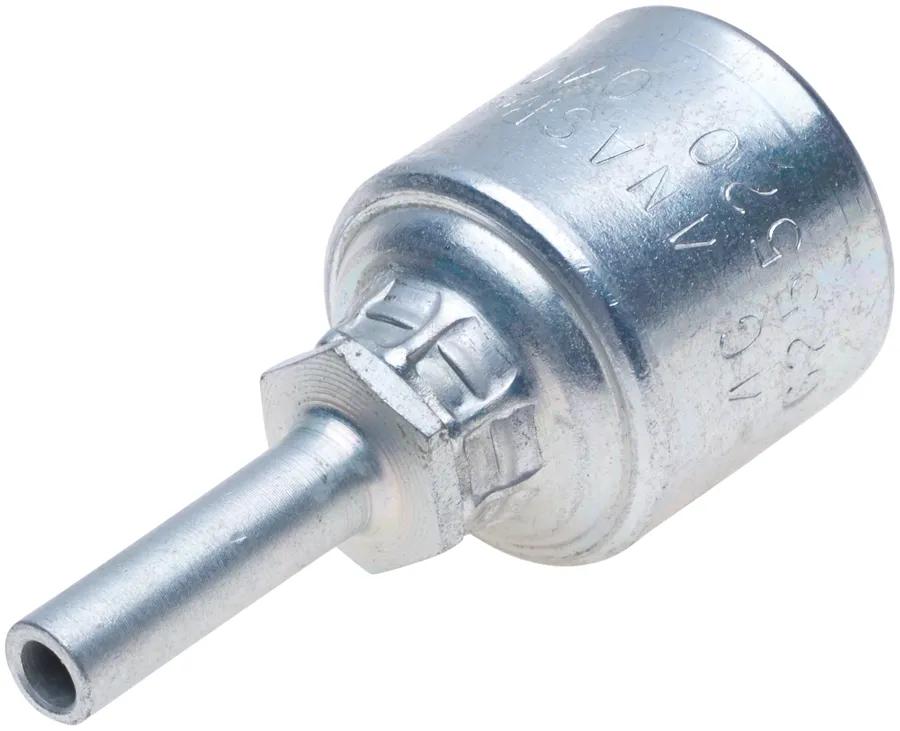

MegaCrimp North American Stand Pipe, 12G-12NASP
#GATG25520-1212
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
- See Accessories for Individual Sleeves & Nuts.
Specifications
| Coupling Description | MegaCrimp North American Stand Pipe |
| Cut Off (in) – C | 1-9/16 in (3.96 cm) |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 12G-12NASP |
| Inside Diameter | 3/4 in (1.91 cm) |
| Length | 3-37/64 in (9.09 cm) |
| Seal Type | Mated Angle |
| Seat | Inverted |
| Stem Hex (in.) | 1-1/16 in (2.69 cm) |
| Swivel | No |
| Tube 1 Inside Diameter (in.) | 3/4 in (1.91 cm) |
| Type | MegaCrimp North American Stand Pipe |
Interchanges & Equivalent parts:
| G25520-1212 |
| 710008435 |
