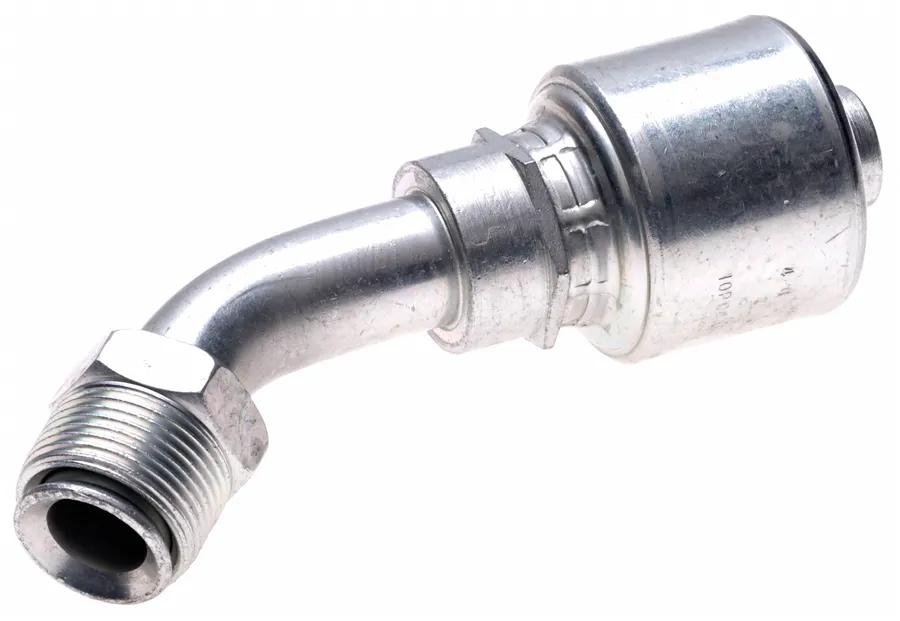

MegaCrimp SAE Male Inverted Swivel, 45*, 6G-5MIX45
#GATG25502-0605
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 45 deg |
| Coupling Description | MegaCrimp SAE Male Inverted Swivel - 45 Bent Tube |
| Cut Off (in) – C | 2-1/32 in (5.16 cm) |
| Drop (in.) | 1 in (2.54 cm) |
| Fitting Type | Male |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 6G-5MIX45 |
| Inside Diameter | 3/8 in (0.97 cm) |
| Length | 3-1/8 in (7.95 cm) |
| Nut Hex (in) – H2 | 1/64 in (0.05 cm) |
| Nut Hex Size | 1/2 in (1.27 cm) |
| Seal Type | Mated Angle |
| Seat | Inverted |
| Seat Angle (degree) | 45 deg |
| Swivel | Yes |
| Type | MegaCrimp SAE Male Inverted Swivel - 45 deg Bent Tube |
Interchanges & Equivalent parts:
| 1AA5MFA6 |
| G25502-0605 |
| 710016315 |
