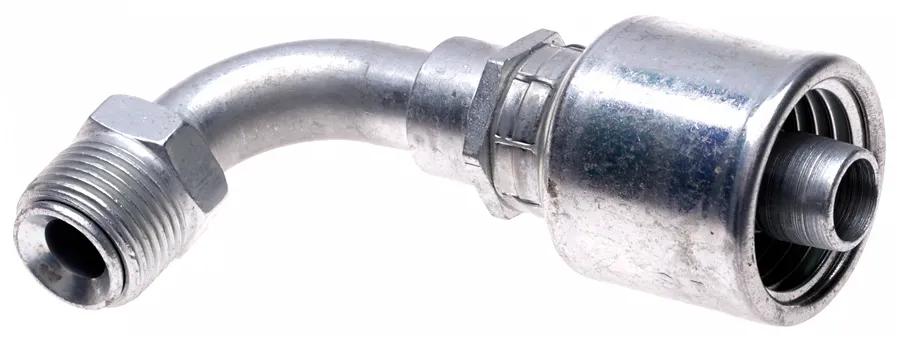

MegaCrimp SAE Male Inverted Swivel, 90*, 10G-10MIX90
#GATG25504-1010
Product Overview
Gates MegaCrimp Couplings are Designed for use w/ Gates Wire Braid Hydraulic Hose to Create a Robust, Leak-Free Assembly. The Pre-Assembled Coupling is Designed w/ a Patented C Insert Attached to the Ferrule.
Features & Benefits
- This Design Ensures that Crimping Forces are Evenly Distributed to Form a Concentric, Leak-Free Seal.
- Robust Bite-the-Wire Crimp. Low Profile. Full-Stem Insertion. Full-Length Crimp. Tested to Industry-Leading 600,000 Impulse Cycles.
- Simplifies Inventory Management. Environmentally-Friendly TuffCoat Plating for 345 Percent Better Corrosion Resistance than SAE Standard.
- One MegaCrimp Coupling Size can Accommodate Various 1 and 2 Wire Braid Hydraulic Hoses of Different Constructions & Wall Thicknesses, Simplifying Inventory Requirements, Helping to Reduce Costs & Simplifying Coupling Selection.
Specifications
| Angle | 90 deg |
| Coupling Description | MegaCrimp SAE Male Inverted Swivel - 90 Bent Tube |
| Cut Off (in) – C | 2-13/32 in (6.12 cm) |
| Drop (in.) | 1-13/16 in (4.6 cm) |
| Fitting Type | Male |
| Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Industrial Description | 10G-10MIX90 |
| Inside Diameter | 5/8 in (1.6 cm) |
| Length | 3-57/64 in (9.88 cm) |
| Nut Hex (in) – H2 | 1/32 in (0.08 cm) |
| Nut Hex Size | 7/8 in (2.24 cm) |
| Seal Type | Mated Angle |
| Seat | Inverted |
| Seat Angle (degree) | 45 deg |
| Swivel | Yes |
| Type | MegaCrimp SAE Male Inverted Swivel - 90 deg Bent Tube |
Interchanges & Equivalent parts:
| G25504-1010 |
| 710006335 |
