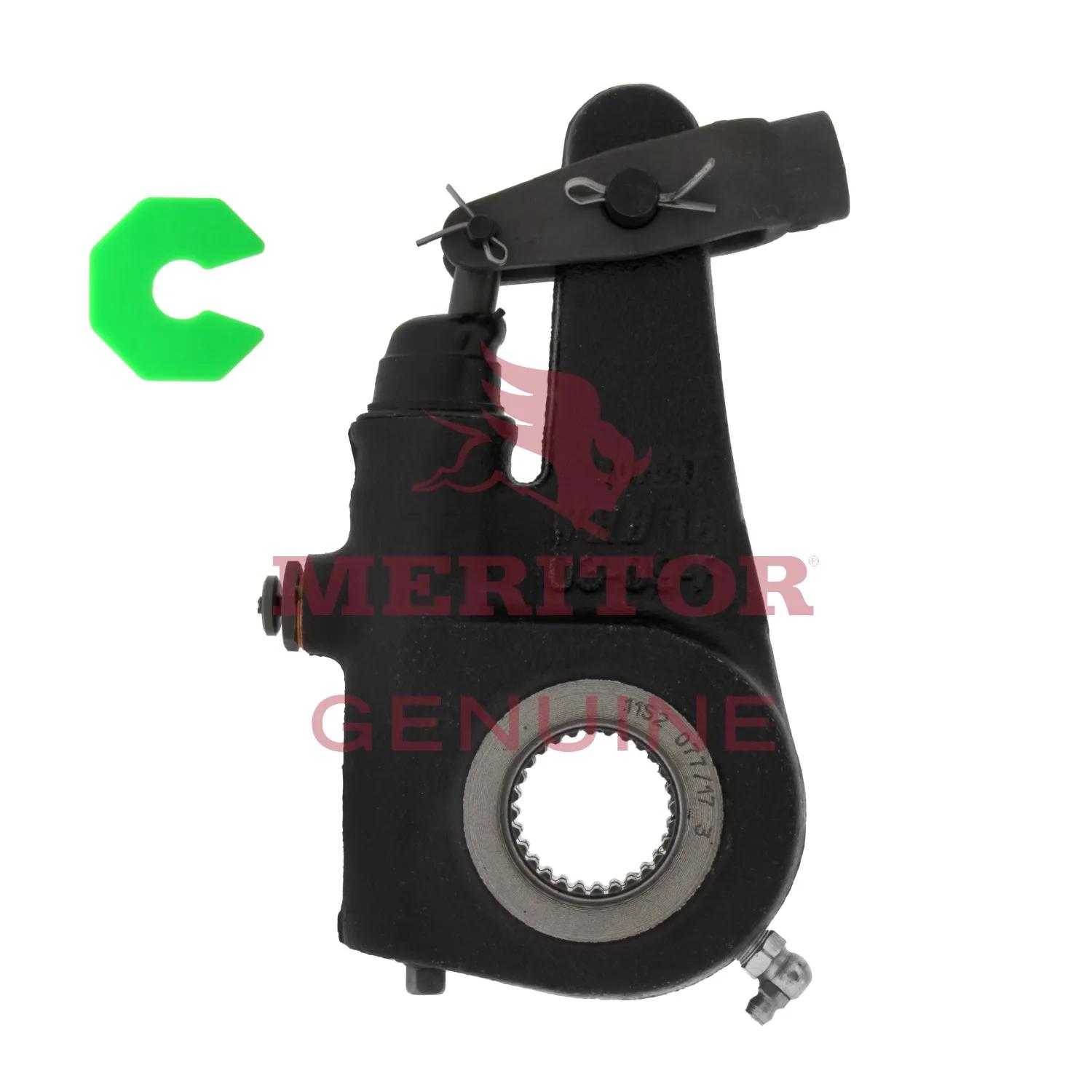

Meritor Air Brake Automatic Slack Adjuster, Straight Clevis, 5.5 in Arm Length, 28 Splines, 1.5 in Spline Dia
#ROCR801073B40
Features & Benefits
- Features corrosion-resistant coating
- Offers durability for extended service life
- Ensures precise brake adjustment
- Provides reliable braking performance
- Increases brake system efficiency
- Enhances overall vehicle safety
- Minimizes brake system maintenance needs
- Meets industry standards and specifications
Specifications
| Angle | 0 deg |
| Automatic or Manual | Automatic |
| Chamber Sizes | 30 in |
| Clevis Threads per inch | 18 in |
| Clevis Type | Straight |
| Maximum Torque | More than 45 in lbs |
| Model | Meritor |
| Notes | Yellow piston. Drum brake. |
| Number of Splines | 28 |
| Production Part Number | A32-3275-H-1152 |
| Spline Diameter | 1.5 in |
| Spline Diameter-Spline Count | 1.5 in - 28 |
| Type | Stroke-Sensing |
| VMRS Code | 013-017-005 |
| Arm Length | 5.5 in |
Interchanges & Equivalent parts:
| H801073N |
| MERR801073 |
| HDAH801073N |
| ROCR803110 |
| 1090261 |
| 41427024 |
| 801073P |
| 8235-R801073 |
| 8235-R801073B40 |
| A2-3275-U-1139 |
| A27-3275-H-1152S |
| A28-3275-H-1152S |
| A32-3275-H-1152 |
| A32-3275-N-768 |
| A46-3275H1152S |
| ABP N42AS R801073 |
| ACA-0076A700 |
| ASM801073 |
| ATIR801073 |
| E-11401 |
| FLTR801073 |
| GTA-R801073 |
| MERR801073-B40 |
| MERR803110 |
| MR801073-B40 |
| MTRR801073 |
| OTR801073 |
| PD 801073P |
| PLR801073 |
| PROSA55073 |
| R801073-RI |
| RBR801073 |
| RW-R801073 |
| RWR801073 |
| SA1073 |
| SAP-R801073 |
| SCSA1073 |
| SIRSA1073 |
| STEMK22102S |
| TDA A32 3275H1152 |
| TDA R801073 |
| TDA R801073B40 |
| TDAR801073 |
| TDAR801073B40 |
| TWDR801073 |
| V1090261 |
| 05-563 |
| 065221BXW |
| 1694064C91 |
| 65247 |
| A2-3275U1139S |
| A21-3275N768S |
| A24-3275N768S |
| ACCAS1140 |
| AS1040 |
| AS1120 |
| BNDK043197 |
| CB22102 |
| CS56007 |
| CS56040M1D |
| E-6994A |
| E11401A |
| FS-R801073 |
| GUNAS-1140 |
| GUNAS1149 |
| K043197BXW |
| OTR65174 |
| R801088 |
| S-A670 |
| WAAS1140 |
| WAR801073 |
| ABP.N42AS.R801073 |
| 13015029 |
| A213275N768S |
| PA10274 |
| ROS13015029 |
| 1362831 |
| R801073 |
| ABPN83319015 |
| N83319015 |
| R803110 |
| PROSA56174 |
| A56174 |
