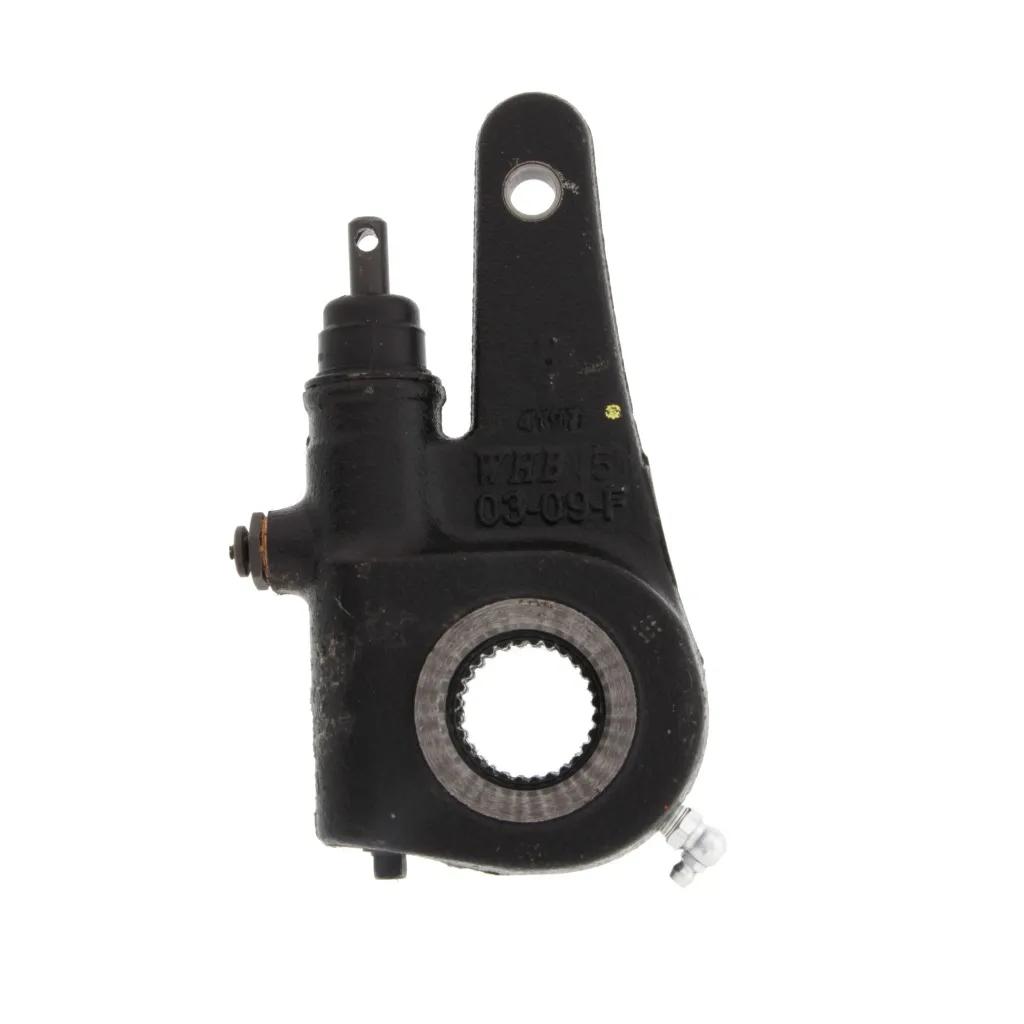

Meritor Air Brake Slack Adjuster, Automatic, Stroke-Sensing, 1-1/2 in - 28 Spline, 5-1/2 in Arm Length
#ROCR803108
Product Overview
Automatic stroke-sensing air brake slack adjuster with 1-1/2 inch diameter and 28 splines. Features a 5-1/2 inch arm length and is designed for drum brake systems. Unclevised chamber type, suitable for 16 inch chambers. Red piston included.Air Brake Slack Adjuster, Unhanded, Unclevised Chamber, 5.50 in Arm Length, 28 Splines, 1.5 in Spline Dia
Specifications
| Automatic or Manual | Automatic |
| Chamber Sizes | 16 in (40.64 cm) |
| Clevis Type | Unclevised |
| Maximum Torque | More than 45 inch pounds |
| Model | Meritor |
| Notes | Red piston. Drum brake. |
| Number of Splines | 28 |
| Spline Diameter | 1-1/2 in |
| Type | Stroke-Sensing, Automatic, Unhanded |
| VMRS Code | 013-017-005 |
| Arm Length | 5-1/2 in |
| Brake Type | Q & Q Plus |
| Chamber Size | 16 in |
| Chamber Type | Unclevised |
| Product Category | Air Brake Slack Adjuster |
| Quantity | 1 |
| Weight | 6.15 lb |
Interchanges & Equivalent parts:
| R801079 |
| 3947672 |
| A243275H1152 |
| ATIR803108 |
| R803108-RI |
| TDA A63275M1183 |
| TDA R803108 |
| TDAR803108 |
| A63275M1183 |
| A733275H1152 |
| 8235-R803108 |
| RWR803108 |
| TDA A6 3275M1183 |
| TWDR803108 |
| 05-563 |
| CS56040M1D |
| MERR803108 |
