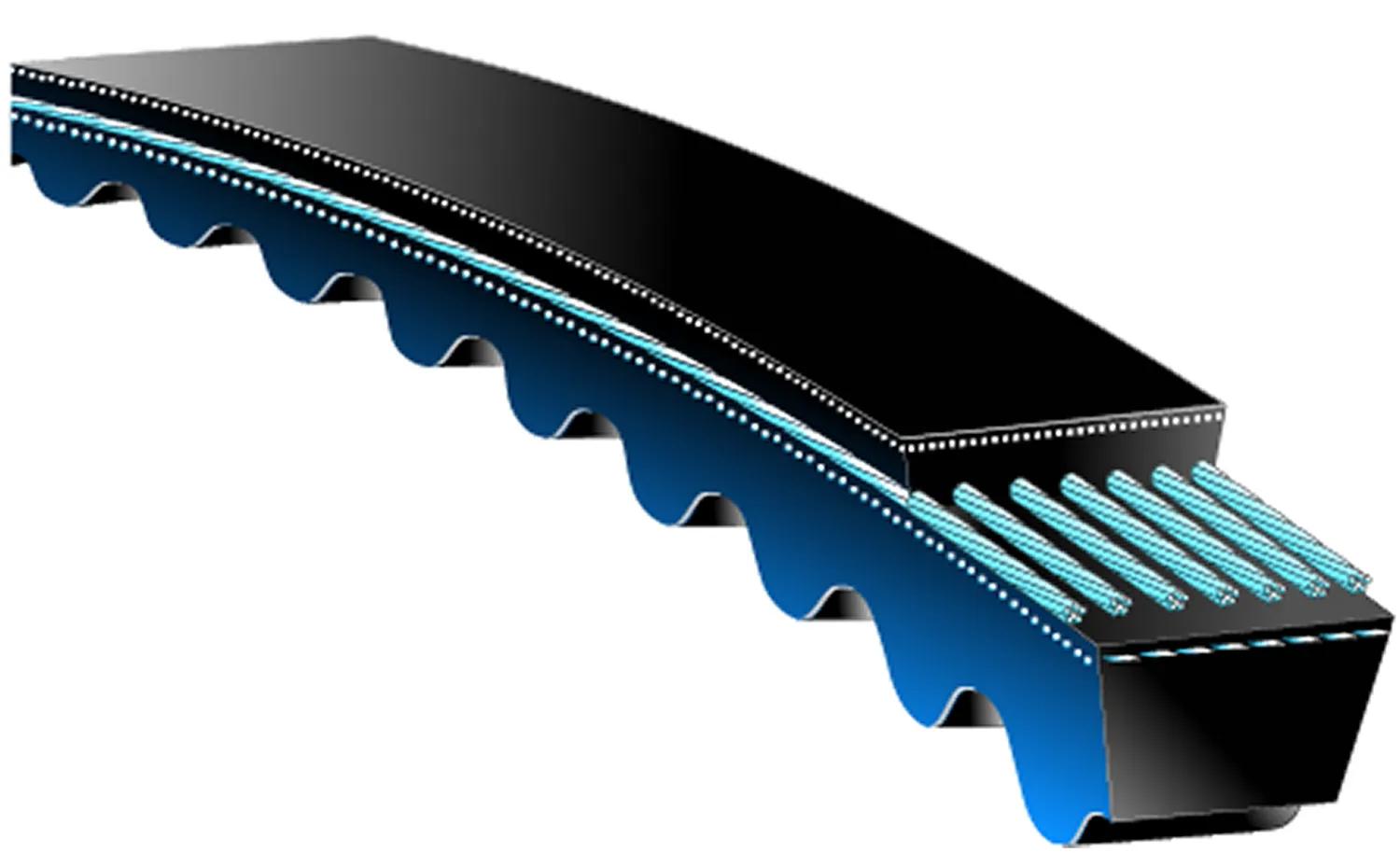

Metric-Power V-Belt, W: 43/64 in
#GATXPB2500
Product Overview
Manufactured In The Americas, These Belts Are Made To Gates High Quality Global Production Standards.
Features & Benefits
- Meets RMA Oil & Heat Resistant Standards.
- Excellent For Textile Mills, Machine Tool & Food Processing Applications.
- Proprietary Construction Features An Unbeatable Combination Of Flex & Load Crrying Capacity, Reduced Stretch & Incredible Cord Adhesion Properties.
- Flex-Bonded Cords Are Chemically Bonded To The Body Of The Belt Resulting In Equal Load Distribution & The Absorption Of Bending Stress w/o Cord Deterioration.
- Metric Power Belts Are Readily Available For Replacement On Drives That Require Metric Cross Sections.
- Molded Notches (In Lengths 3,000 mm & Under) Reduce Thermal & Bending Stresses.
- Meets RMA Static Conductivity Requirements.
Specifications
| Belt Top Width | 5/8 to 3/4 in (1.6 to 1.91 cm) |
| Construction | Molded Notch |
| Length | 98.43 in |
| Section | XPB |
| Length Range | 90 to 99.99 in |
| Type | Metric-Power V-Belt |
| Width | 43/64 in (1.7 cm) |
Interchanges & Equivalent parts:
| 942112500 |
