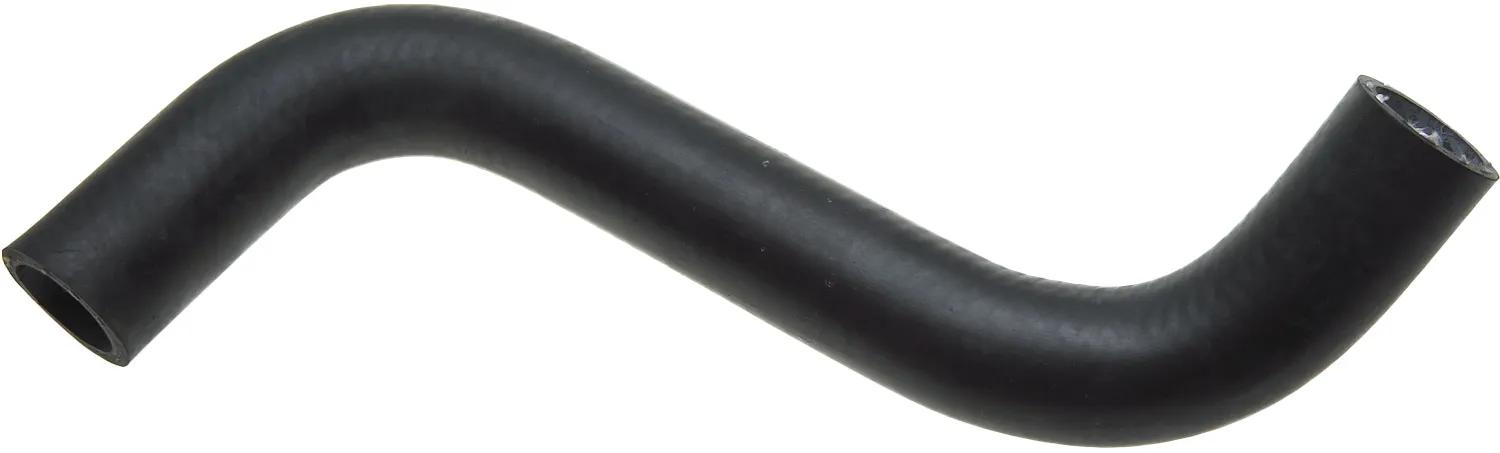

Molded Coolant Hose, EPDM, L: 16-3/32 in, ID: 1-3/16 in
#GAT22336
Features & Benefits
- Approved for marine applications
- Engineered to resist electrochemical degradation - the leading cause of hose failure
- Meets SAE 20R3 EC Class D1 under 25mm (1") ID, SAE 20R4 EC Class D1 for 25mm (1") ID and over
- Specifically engineered materials resist vacuum collapse to reduce the need for internal springs in many applications
- Custom shapes available with minimum order quantity and setup charge
- Recommended for upper, lower, by-pass, heater and other coolant hose applications
- Note: Gates recommends replacing hose clamps each time a new coolant hose is installed
- EPDM tube, synthetic fiber knit reinforcement, heat- and ozone-resistant EPDM cover
Specifications
| Caution | Do not use for fuel or oil transfer applications |
| Contains Spring | No |
| Inside Diameter 1 (in) | 1-3/16 in (3.02 cm) |
| Inside Diameter 2 (in) | 1-3/16 in (3.02 cm) |
| Length | 16-3/32 in (40.87 cm) |
| Material | EPDM |
| Modular Hose | No |
| Note | Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip SB Clamps each time a new coolant hose is installed. |
| Number of Branches | 0 |
| Temperature Range | -40°F @ 275°F (-40°C @ 135°C) |
| Weight | 0.74 lb (0.34 kg) |
Interchanges & Equivalent parts:
| 62437 |
| 72071 |
| 24374L |
| 94856868 |
| E72071 |
| MH2336 |
| 165720D020 |
